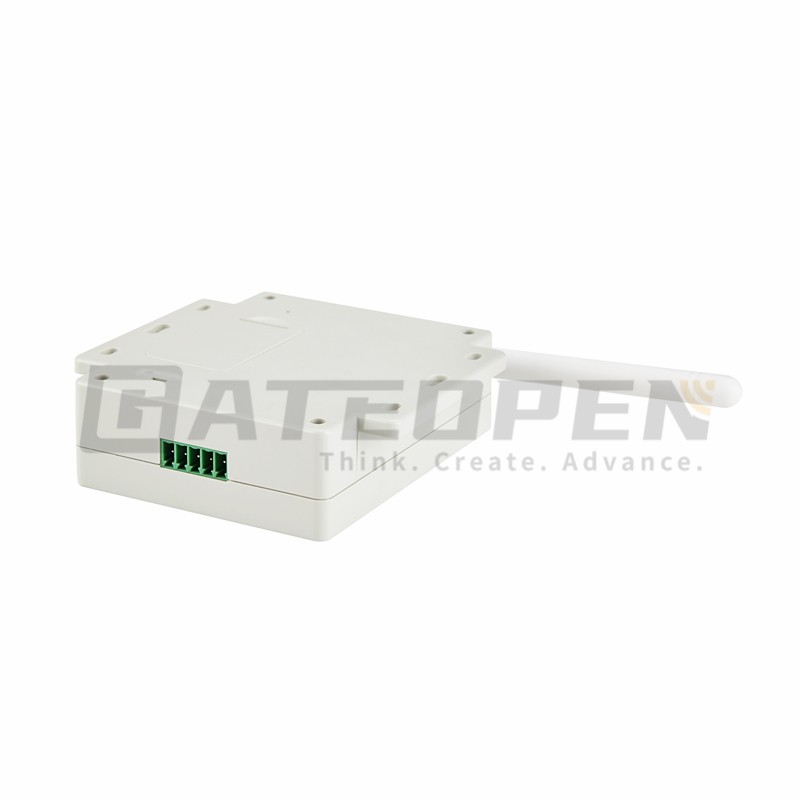

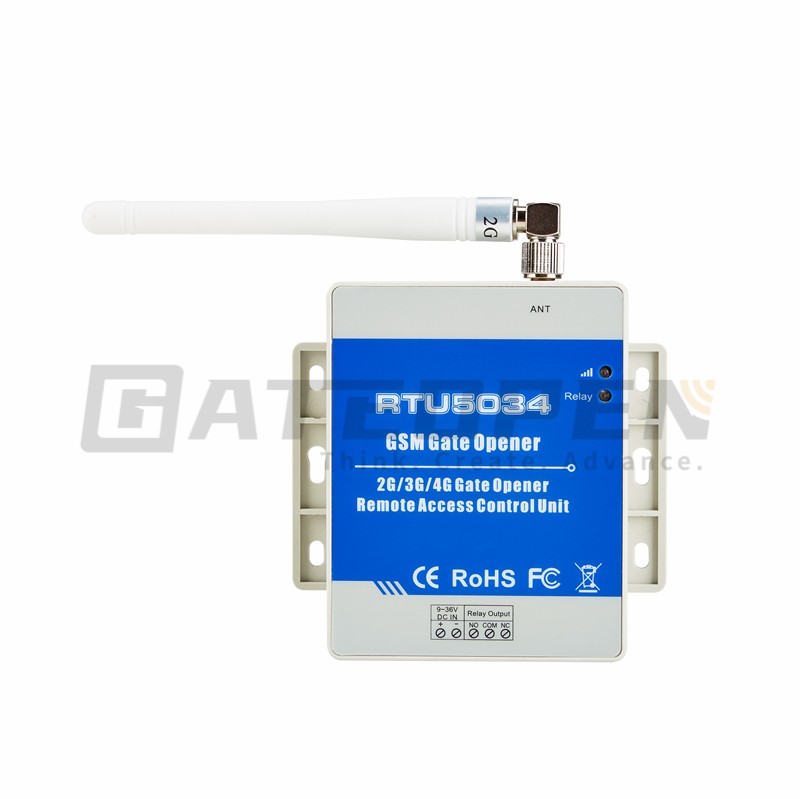

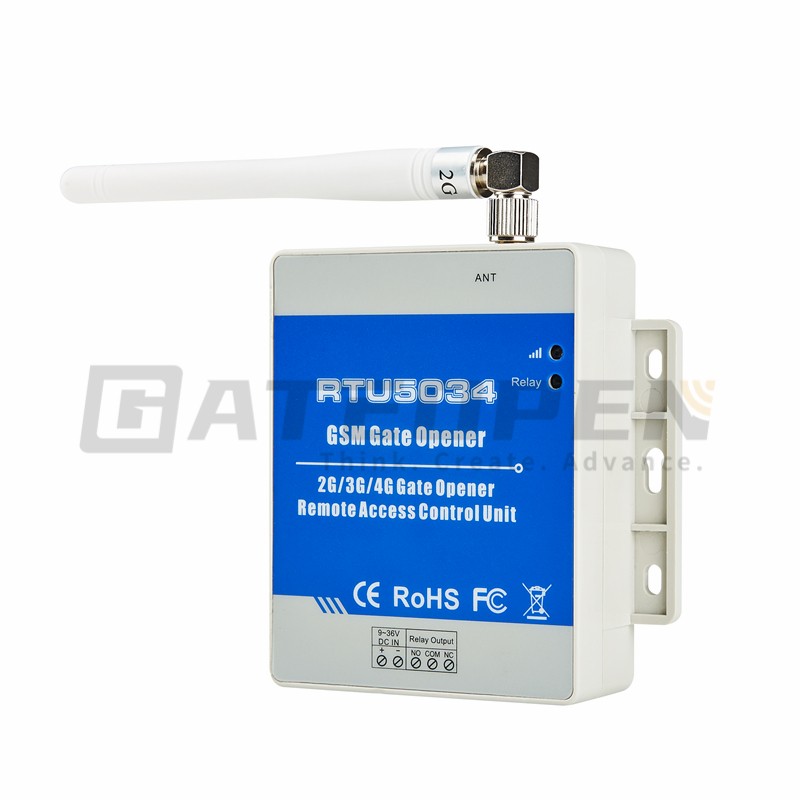

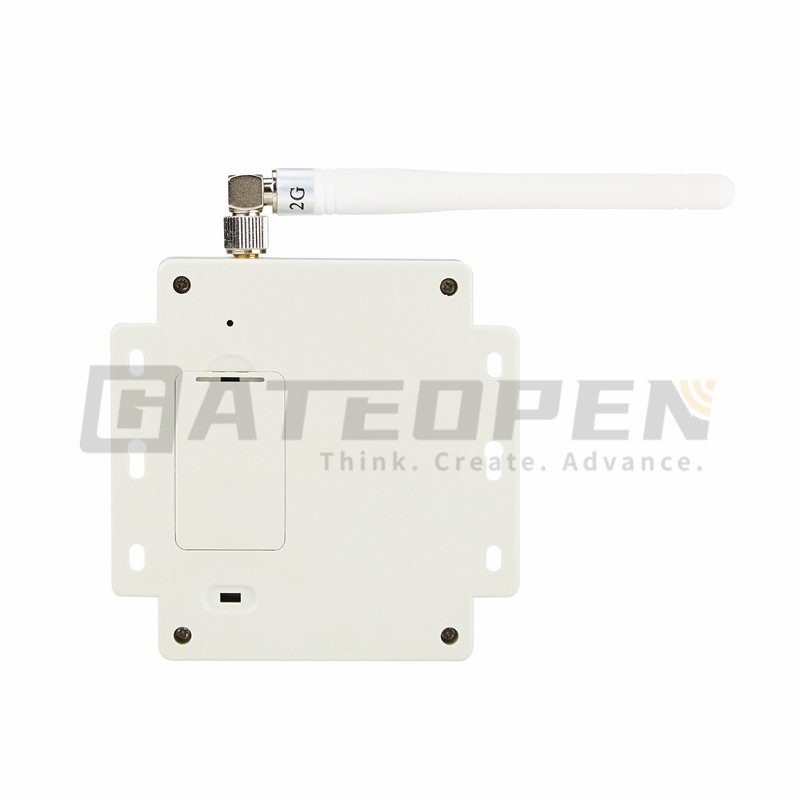

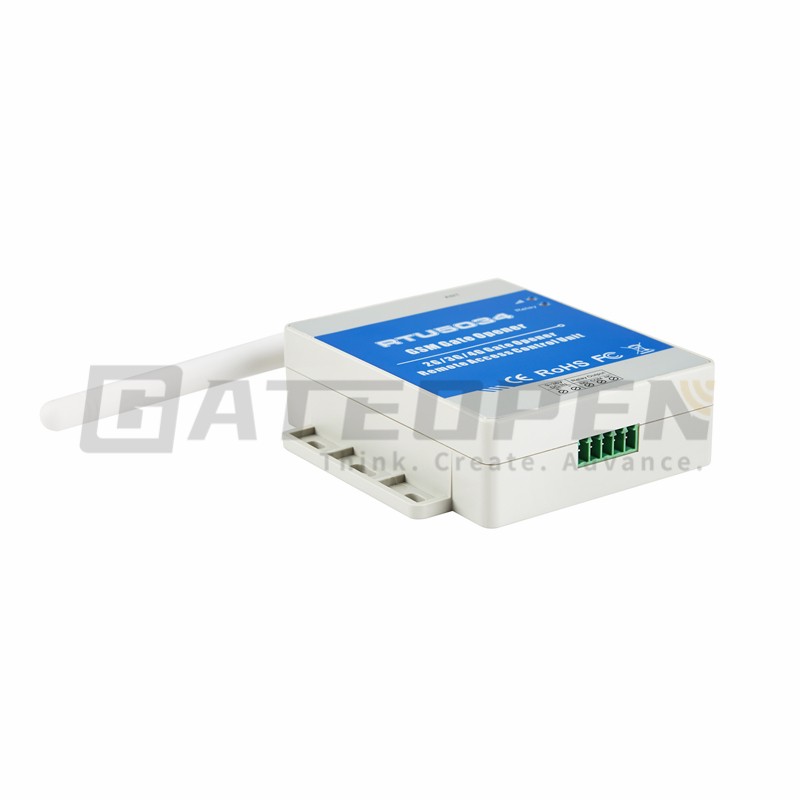

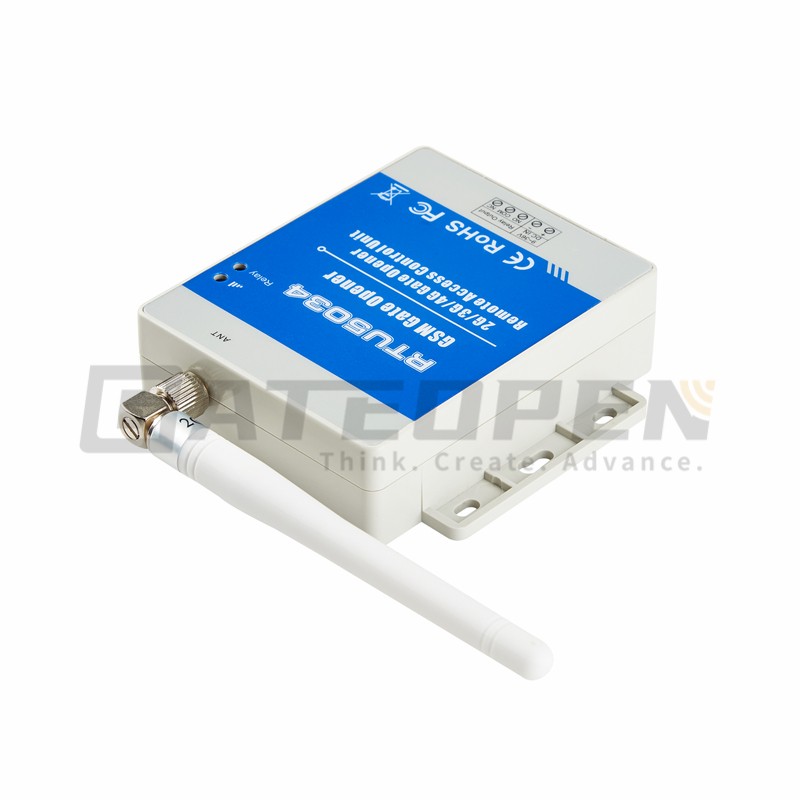

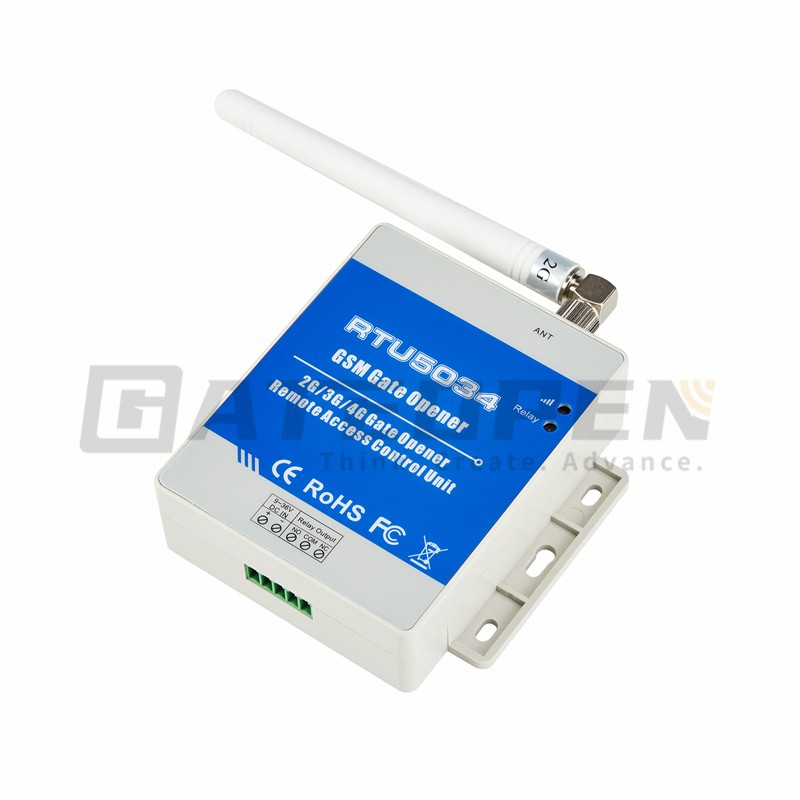

RTU5034 Wireless Door Opener Remote Gate Opener Relay Switch Automatic Door Access Controller
1.The GSM Gate Opener RTU5034 is a powerful GSM relay that can be used for authorized door access, controlling gates, switching of remote equipment, and car parking systems.
2.Add or remove users by SMS Text commands.
3.The relay close or open time is programmable.
4.Quad-band, can work in the worldwide GSM Networks.
5.No need to provide a remote control or keys for different users.
6.Up to 200 authorized phone numbers can be configured at the specified time.
7.One output with relay rating 3A/240VAC for connecting the switch of the door or machines.
8.Multiple applications. (gates, bollards, barriers, garage doors, shutters and access doors).
9.The relay action will return a SMS confirmation to the owner or authorized call in number, this function is editable by user.
10.No call charges. the GSM GPRS Relay Switch rejects the call from authorized number then carries out the turn ON/OFF action on the first "ring".
1. GSM Frequency: Quad-band 850/900/1800/1900MHz
3G WCDMA CDMA2000 Optional
2. Digital Output: NC/NO dry contact, 3A/240VAC
3. DC Power Supply: 9-24VDC/2A
4. Power Consumption: 12V Input Max.50mA/Average 25mA
5. SIM Card: Support 3V SIM Card
6. Antenna: 50Ω SMA Antenna Interface
7. Temperature Range: -20～60℃
8. Humidity Range: Ralative Humidity 90%
9. Exterior Dimension: 90x 70x 27mm
