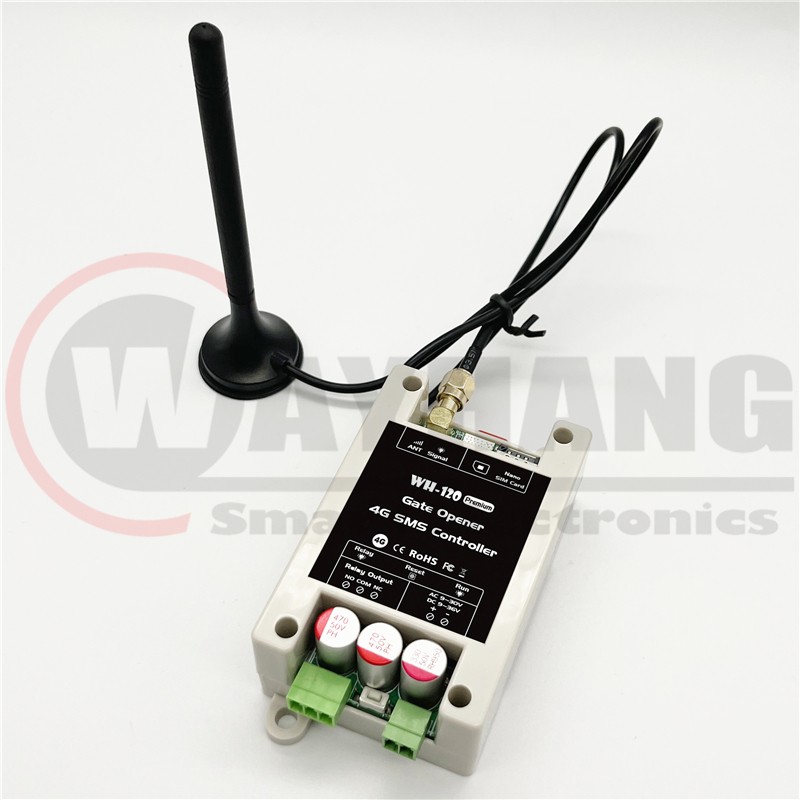

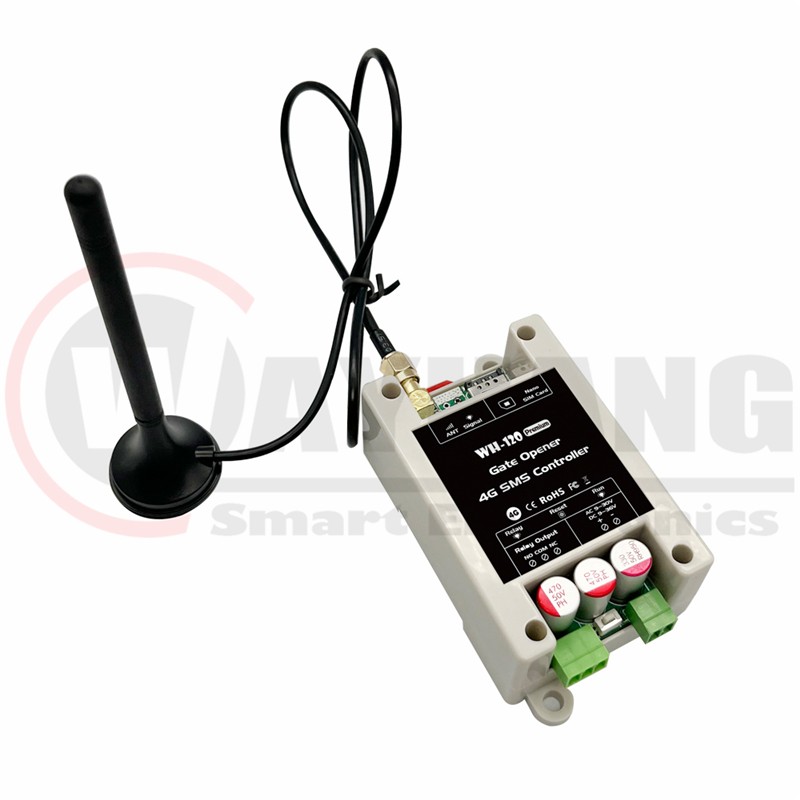

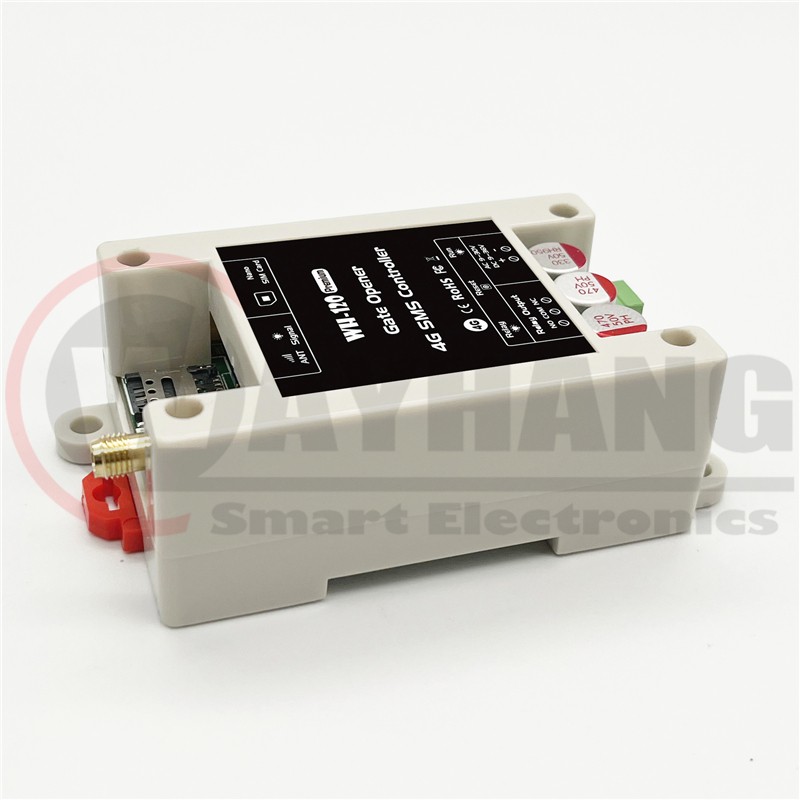

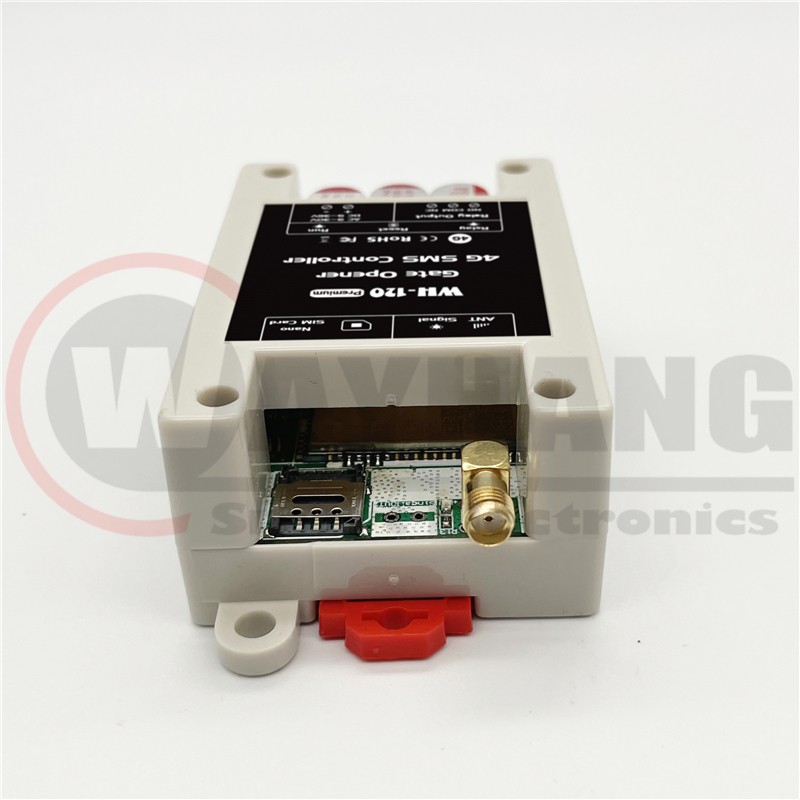

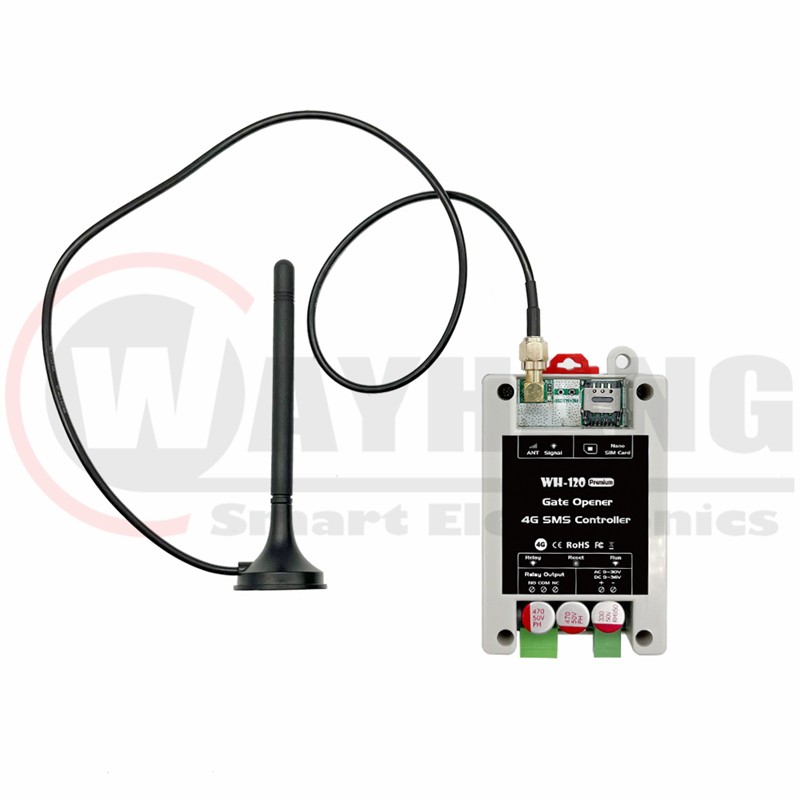

AC DC 4G/LTE GSM Remote Control Garage Gate Opener SMS Access Controller

AC DC 4G/LTE GSM Remote Control Garage Gate Opener SMS Access Controller

EMAIL

<<>>



Features

4G GSM network communication, no distance limitation, can be used anywhere.
Works with a Nano SIM card, users could dial the SIM card number to open the door.
No phone charges, no distance limits, no keyfobs.
More convenient and friendly than any other solutions.

1.      No call charges. The GSM 4G Gate Opener rejects the call from authorized number, then the relay will turn ON/OFF on the first ring;

2.      It is no longer traditional to open the door, but it is more interesting to shake the mobile phone to unlock the door.

3.      Multiple applications. (gates, bollards, barriers, garage doors, shutters and access doors or  machines);

4.      Secure - Using caller ID for identification, unknown callers are ignored;

5.      Can be operated from anywhere, no distance limit;

6.      Add or remove users by SMS Text command;

7.      No need to provide a remote control for different users;

8.      Up to 200 or 1200 authorized phone numbers can be configured;

9.      One output with relay (3A/240VAC)for connecting the switch of the door or machines;

10.   The relay action will return a SMS confirmation to the owner, this function is editable by user;

11.     Based on GSM Network, applied to many applications.


Specifications:

Rated Voltage: AC9V-30V amd DC 9V~36V/1A

Working temperature: -10℃~+60℃

Storage temperature: -20℃~+60℃

Relative humidity: 10-90%, No condensation

Work frequency:

GSM / 4G Frequency
GSM: quad-band 850 / 900 / 1800 / 1900MHz

4G-EU(For EMEA):

LTE-FDD Bands: B1/B3/B5/B7/B8/B20/B28
LTE-TDD Bands: B38/B40/B41
GSM: 850/900/1800/1900MHz

4G-AU(For Latin America/ Australia/New Zealand):
LTE-FDD Bands:B1/B2/B3/B4/B5/B7/B8/B28

LTE-TDD Bands: B40

WCDMA:B1/B2/B4/B5/B8

GSM: 850/900/1800/1900MHz

Communication protocol: GSM PHASE 2/2+ (include data service)

Related Voltage of the Output Relay: 3A/240V AC

SIM Card:Nano type, 3V

Antenna: 50 Ω SMA

Wired Switch: Supports

Dimension: 96.5*50*31.5mm

Net Weight: 88g







Packaging Details:

1. Outside package: Standard marine export plywood case.

2. inner package: Stretchy film and plastic film for humidity.

3. We can package according to your requests.

Delivery Detail: Shipped in 5-30 working days after payment.

Production Time:
Normally in stock model products:

Quantity:1-100pcs only 2day ,Quantity:101-2000pcs need 3-15days, >2000pcs please contact with sales to confirm.

OEM time:
5-15days for 1000pcs, if over 10,00pcs, please contact with us to confirm the accurate  production  time.

OEM quantity:
If customized logo on products, MOQ:100 -300pcs;If customized packaging & use manual, MOQ: 500pcs

Shipping:

wh-120 pro 4g white.jpg





认证带LOGO 750.png



Q1: Are you a trading company or a manufactory?

A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !

Q2: What’s your guarantee or the warranty of the quality if we buy your machines?

A2: We offer you high quality product with 1 year guarantee and supply life-long technical support.

Q3: When can I get my devices after I paid?

A3: The delivet time is based on the exact devices you confirmed.

Q4: How can I install my device when it arrives?

A4: We will provide complete operation video and manual of the devices and train your staff how to operate the devices online.

Q5: How about the Rutern this defective product?

A5: First of all, please send us the pictures and videos of the product for confirmation. If there is a problem with the product, please send it back to us through the international parcel service, if there is a problem with the product. Next time we order, we will send you a new product together.
