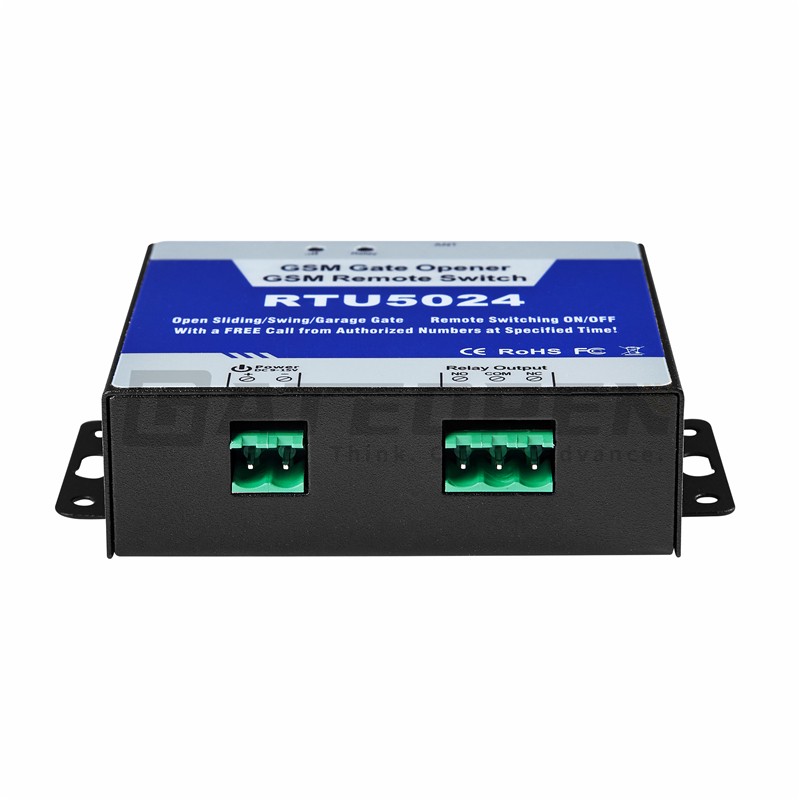

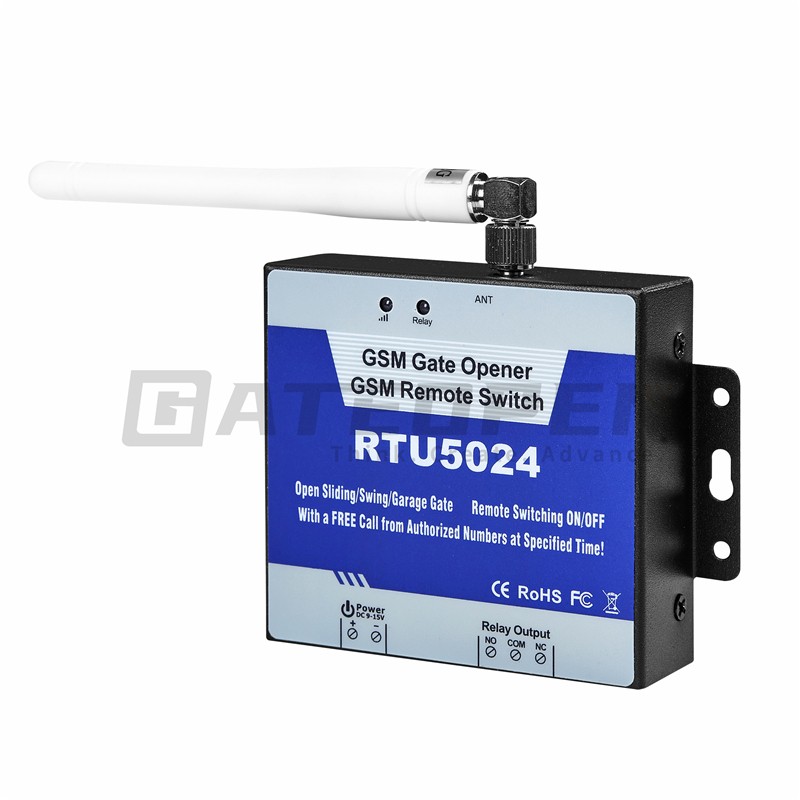

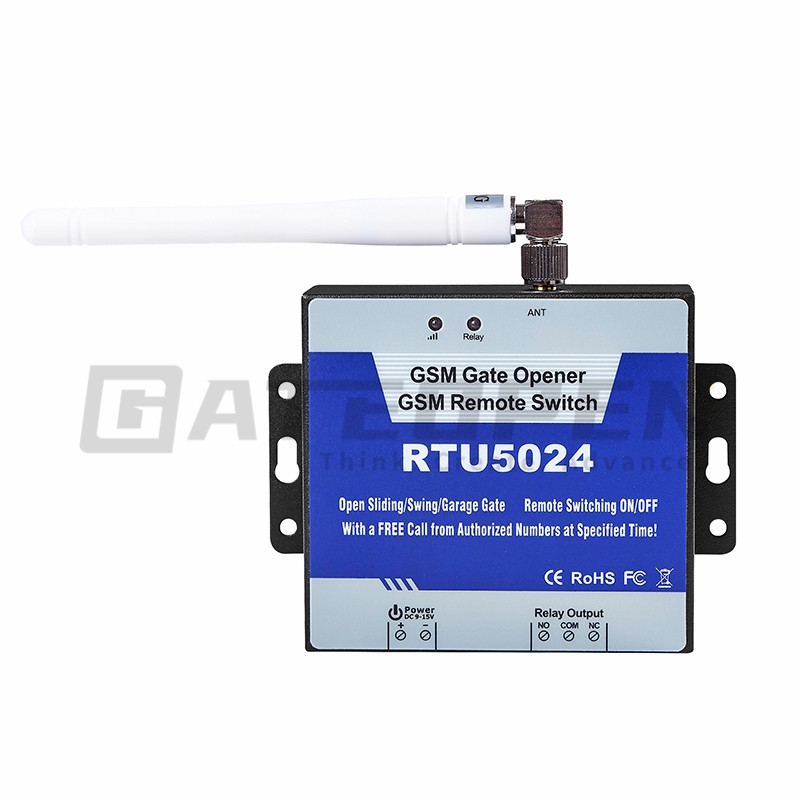

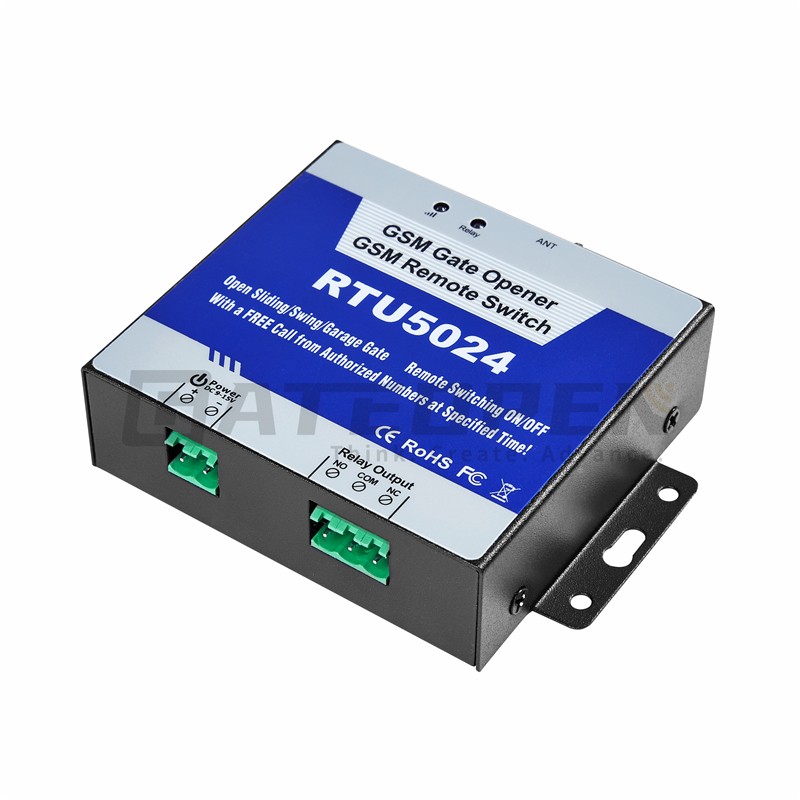

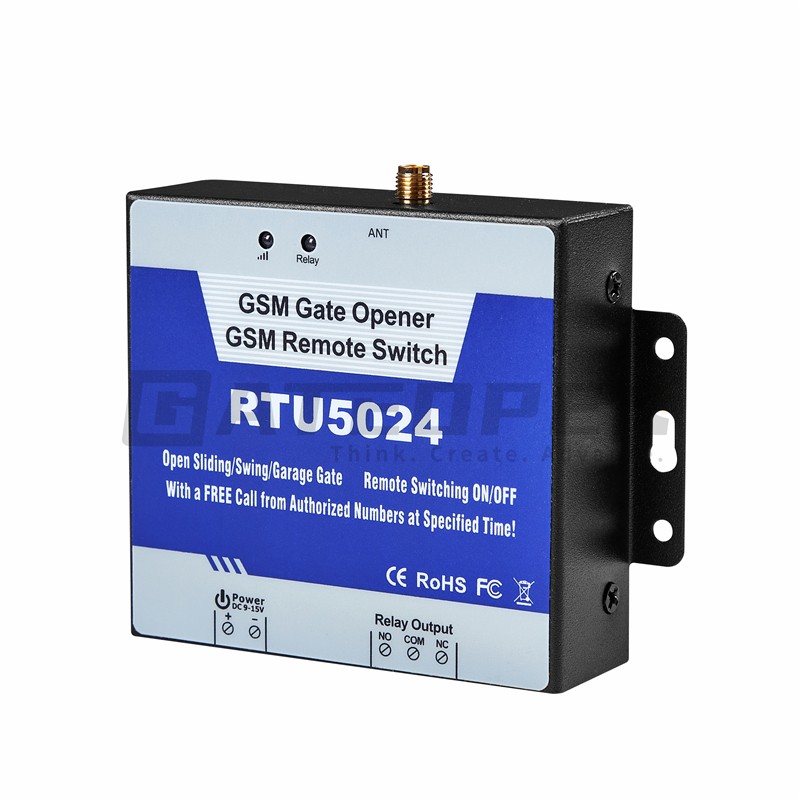

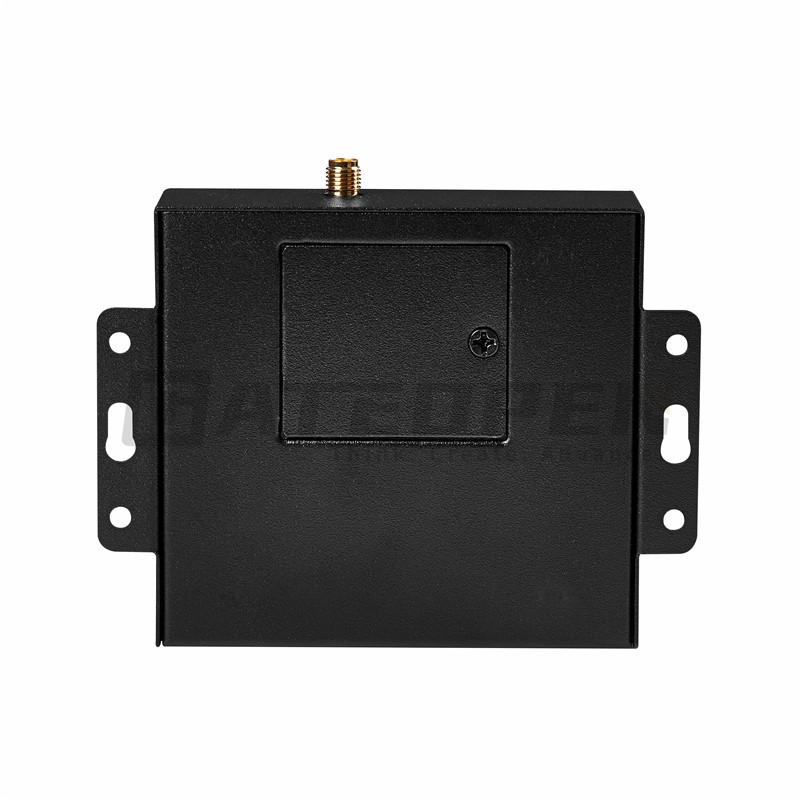

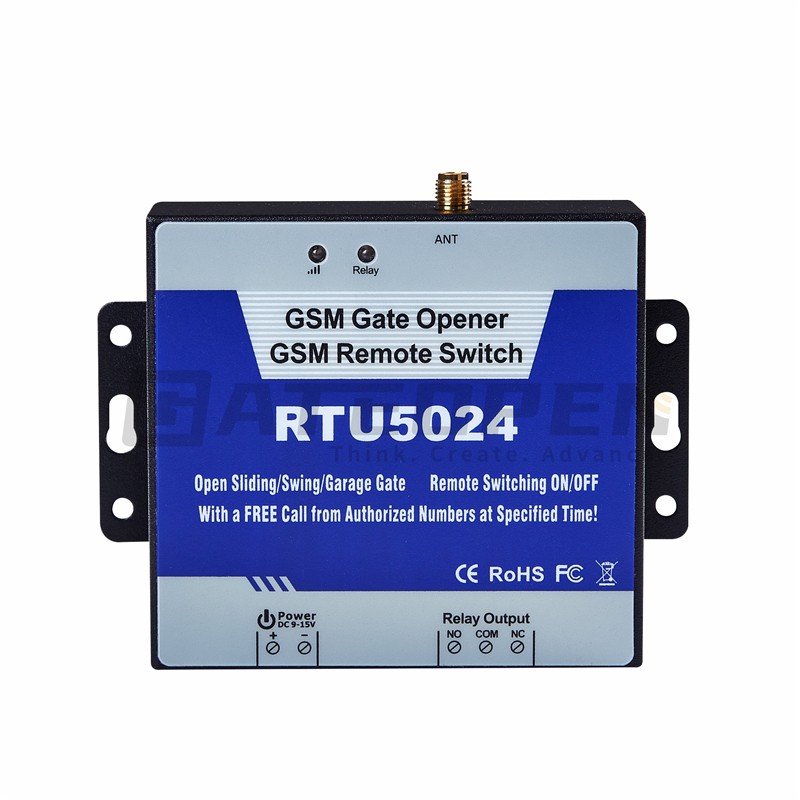

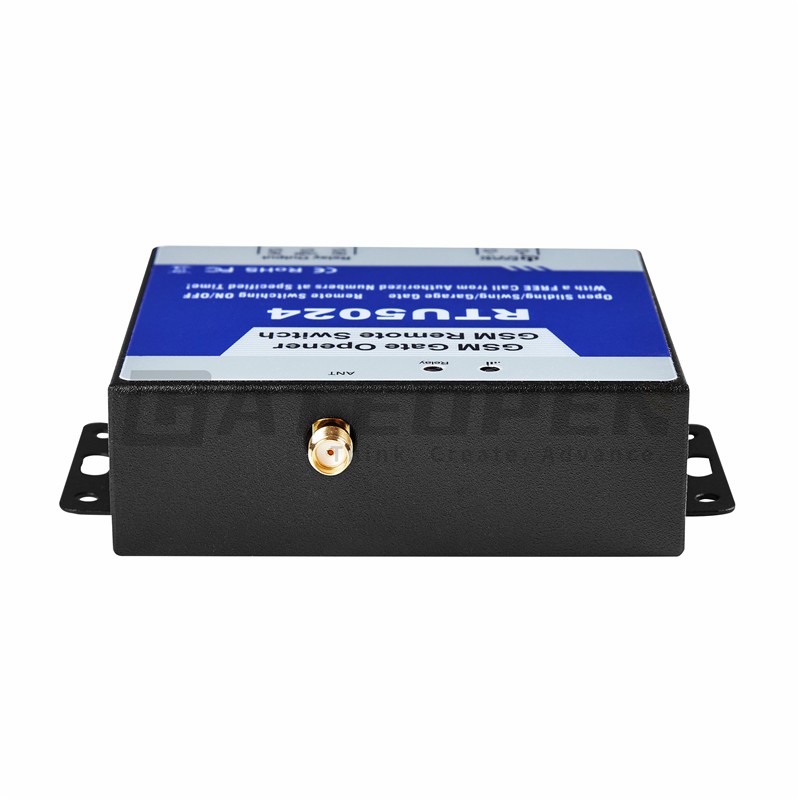

RTU5024 GSM Gate Opener Relay Switch Phone Wireless Remote Control Door Access

RTU5024 GSM Gate Opener Relay Switch Phone Wireless Remote Control Door Access




1.The GSM Gate Opener RTU5024 is a powerful GSM relay that can be used for authorized door access, controlling gates, switching of remote equipment, and car parking systems.
2.Add or remove users by SMS Text commands.
3.The relay close or open time is programmable.
4.Quad-band, can work in the worldwide GSM Networks.
5.No need to provide a remote control or keys for different users.
6.Up to 200 authorized phone numbers can be configured at the specified time.
7.One output with relay rating 3A/240VAC for connecting the switch of the door or machines.
8.Multiple applications. (gates, bollards, barriers, garage doors, shutters and access doors).
9.The relay action will return a SMS confirmation to the owner or authorized call in number, this function is editable by user.
10.No call charges. the GSM GPRS Relay Switch rejects the call from authorized number then carries out the turn ON/OFF action on the first "ring".


1. GSM Frequency: Quad-band 850/900/1800/1900MHz

   3G WCDMA CDMA2000 Optional

   4G LTE

2. Digital Output: NC/NO dry contact, 3A/240VAC
3. DC Power Supply: 9-24VDC/2A
4. Power Consumption: 12V Input Max.50mA/Average 25mA

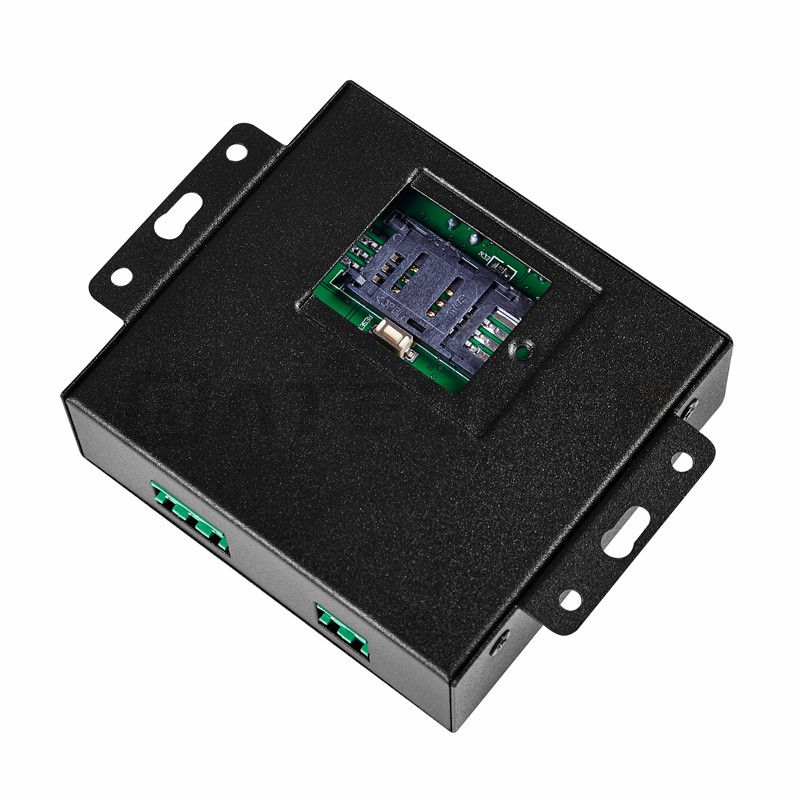

5. SIM Card: Support 3V SIM Card
6. Antenna: 50Ω SMA Antenna Interface
7. Temperature Range: -20~60℃
8. Humidity Range: Ralative Humidity 90%
9. Exterior Dimension: 82x 76x 27mm/3.23x 2.99x 1.06 inch20200826170936_93616.jpg

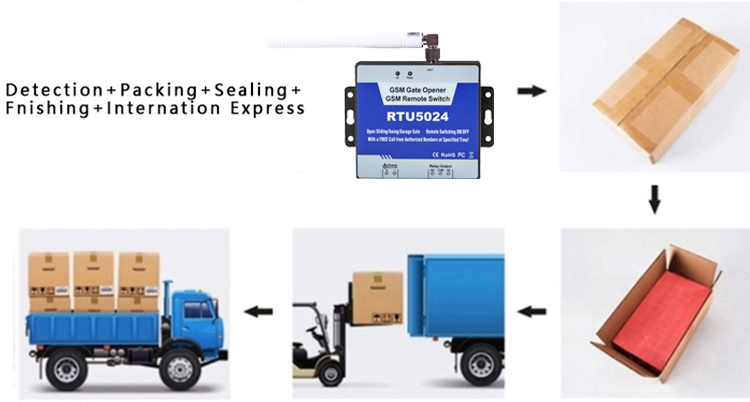

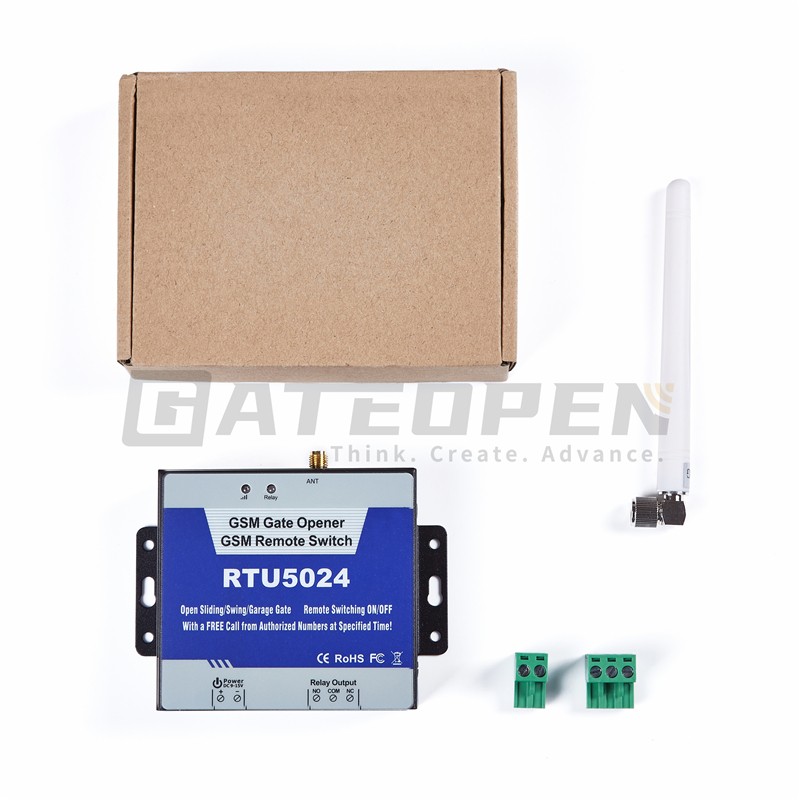

Packaging Details:

1. Outside package: Standard marine export plywood case.

2. inner package: Stretchy film and plastic film for humidity.

3. We can package according to your requests.

Delivery Detail: Shipped in 5-30 working days after payment.

Production Time:
Normally in stock model products:

Quantity:1-100pcs only 2day ,Quantity:101-2000pcs need 3-15days, >2000pcs please contact with sales to confirm.

OEM time:
5-15days for 1000pcs, if over 10,00pcs, please contact with us to confirm the accurate  production  time.

OEM quantity:
If customized logo on products, MOQ:100 -300pcs;If customized packaging & use manual, MOQ: 500pcs




认证带LOGO 750.png


Q1: Are you a trading company or a manufactory?

A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !

Q2: What’s your guarantee or the warranty of the quality if we buy your machines?

A2: We offer you high quality product with 1 year guarantee and supply life-long technical support.

Q3: When can I get my devices after I paid?

A3: The delivet time is based on the exact devices you confirmed.

Q4: How can I install my device when it arrives?

A4: We will provide complete operation video and manual of the devices and train your staff how to operate the devices online.

Q5: How about the Rutern this defective product?

A5: First of all, please send us the pictures and videos of the product for confirmation. If there is a problem with the product, please send it back to us through the international parcel service, if there is a problem with the product. Next time we order, we will send you a new product together.
