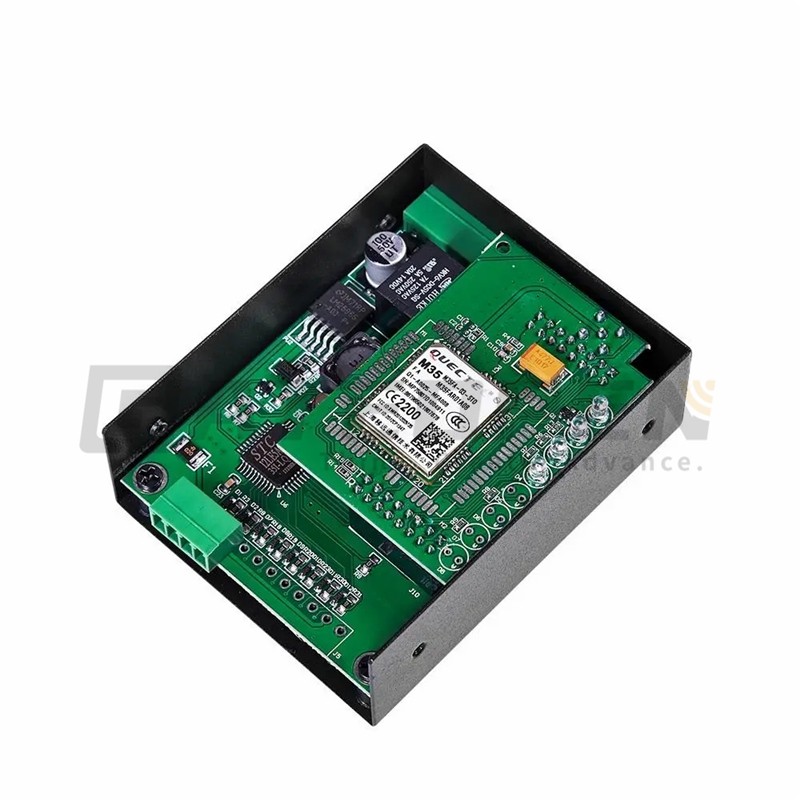

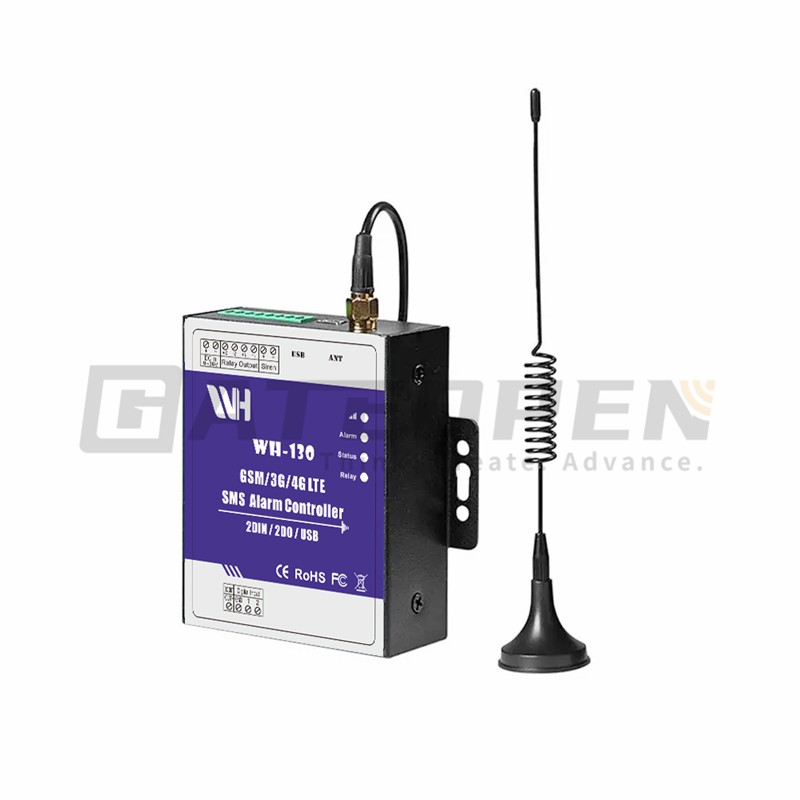

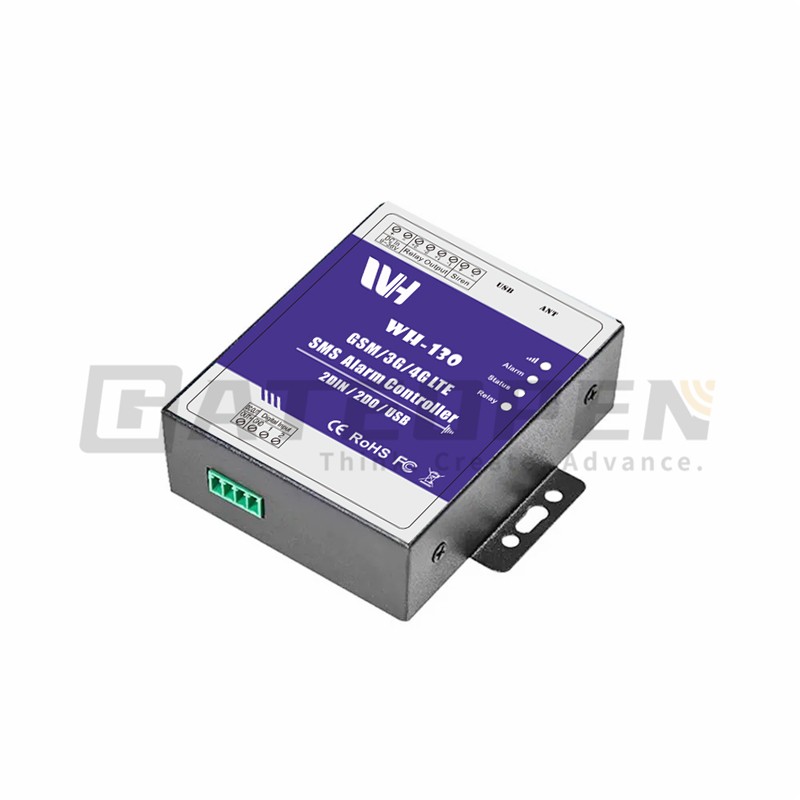

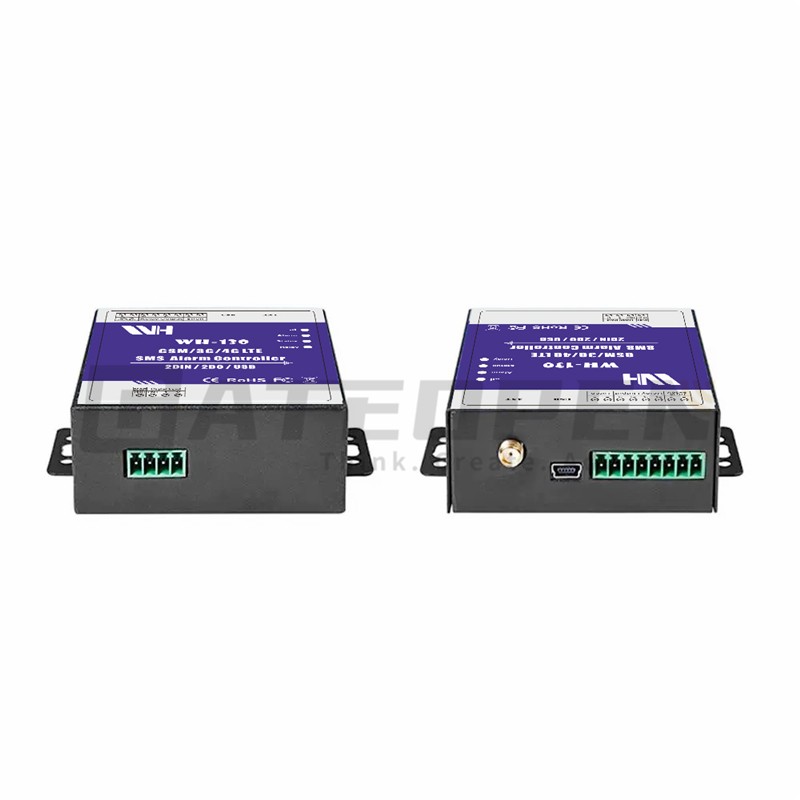

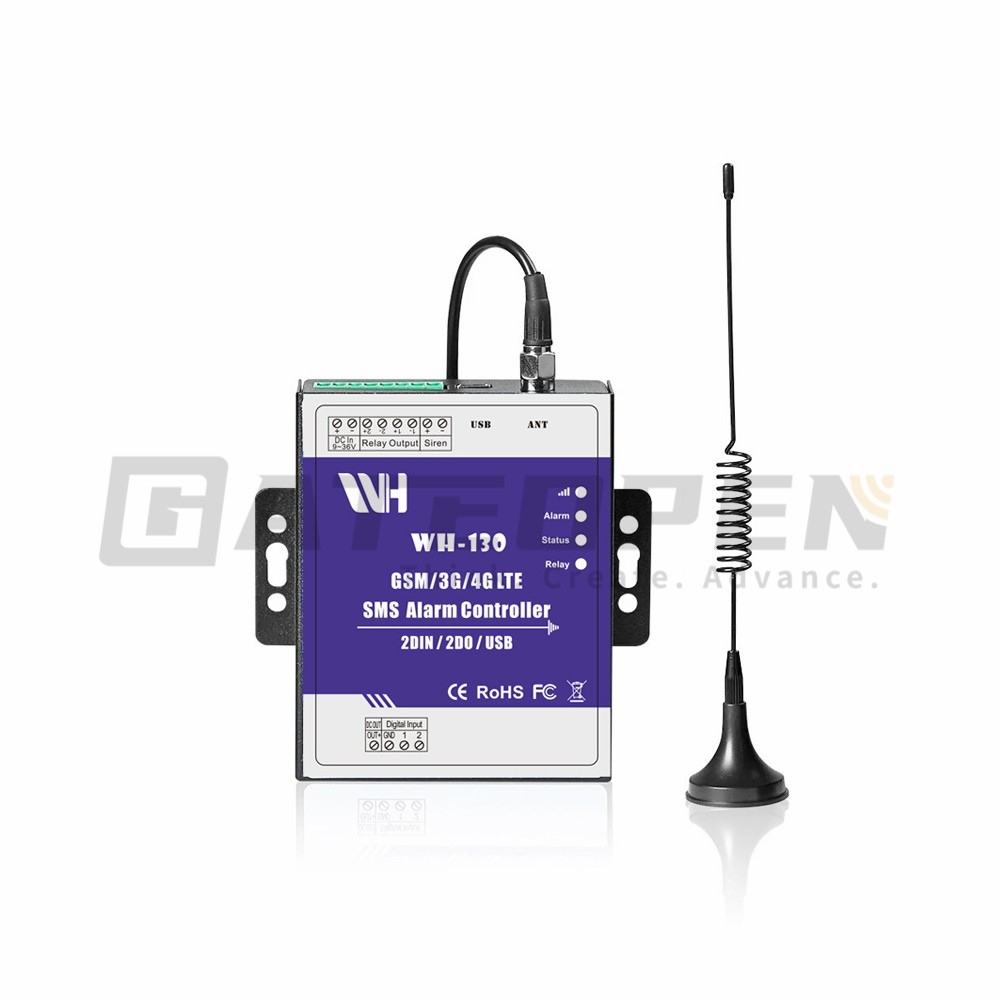

WH-130 3G 4G GSM SMS ALARM CONTROLLER USED FOR GSM ACCESS CONTROL SYSTEM

3G 4G GSM SMS ALARM CONTROLLER USED FOR GSM ACCESS CONTROL SYSTEM

EMAIL



Features

1. Wireless remote controller work by GSM Quad-band  Network

2. Lighting/Pump/Generator/Motor/Valve Remote switch controller

3. Wireless GSM Switch 2 NC/NO/EOL Dry Contact Inputs

4. Two Relay Outputs,load capacity 110V/5A, 240V/3A. RELAY1 Controlled by input sensor (1~120mins), RELAY2 controlled by SMS commands (1234CC for ON, 1234DD for OFF).


Specifications:

Frequency:

   GSM: 850/900/1800/1900MHz

   3G WCDMA: 900/2100 MHz UMTS

   3G CDMA2000:850/1900MHz UMTS

   3G: 850/2100MHz UMTS

   4G LTE

Power adapter: DC 12V/1.5A

Power Current: Max:500mA   Type :50mA

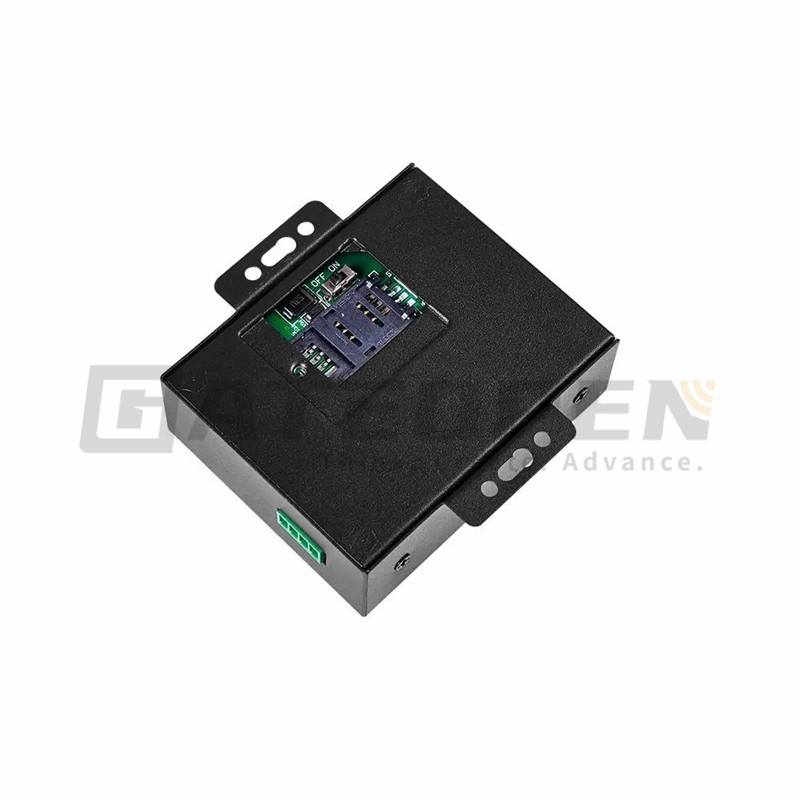

SIM Card: Supporting 3V SIM Card

GSM Antenna: 50 Ω SMA Antenna interface,

Serial  port: USB Port

Input Type: 2 dry contact, NC/NO/End Of Line

Output Type: 2 Relay Output, 240VAC/3A.

Dimension: LxWxH 153x86x28mm

Backup-Power: 3.7V 1200MAh LI-ION battery

Temperature: -20°C to +60 °C

Humidity: Relative humidity 20~95% (condensation free)

Net Weight: 320g

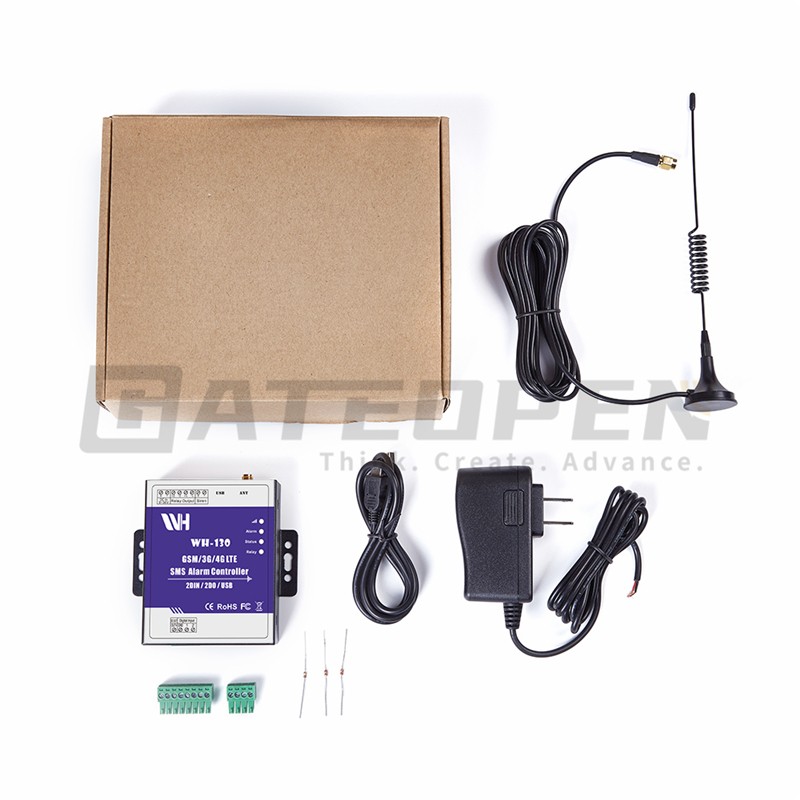

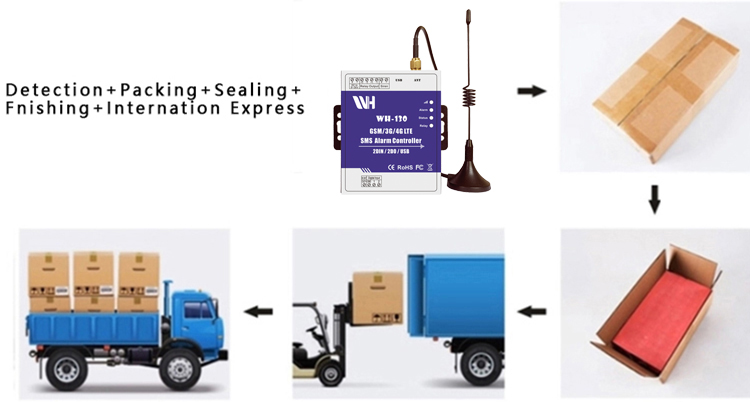

Packaging Details:

1. Outside package: Standard marine export plywood case.

2. inner package: Stretchy film and plastic film for humidity.

3. We can package according to your requests.

Delivery Detail: Shipped in 5-30 working days after payment.

Production Time:
Normally in stock model products:

Quantity:1-100pcs only 2day ,Quantity:101-2000pcs need 3-15days, >2000pcs please contact with sales to confirm.

OEM time:
5-15days for 1000pcs, if over 10,00pcs, please contact with us to confirm the accurate  production  time.

OEM quantity:
If customized logo on products, MOQ:100 -300pcs;If customized packaging & use manual, MOQ: 500pcs

Shipping:





认证带LOGO 750.png



Q1: Are you a trading company or a manufactory?

A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !

Q2: What’s your guarantee or the warranty of the quality if we buy your machines?

A2: We offer you high quality product with 1 year guarantee and supply life-long technical support.

Q3: When can I get my devices after I paid?

A3: The delivet time is based on the exact devices you confirmed.

Q4: How can I install my device when it arrives?

A4: We will provide complete operation video and manual of the devices and train your staff how to operate the devices online.

Q5: How about the Rutern this defective product?

A5: First of all, please send us the pictures and videos of the product for confirmation. If there is a problem with the product, please send it back to us through the international parcel service, if there is a problem with the product. Next time we order, we will send you a new product together.
