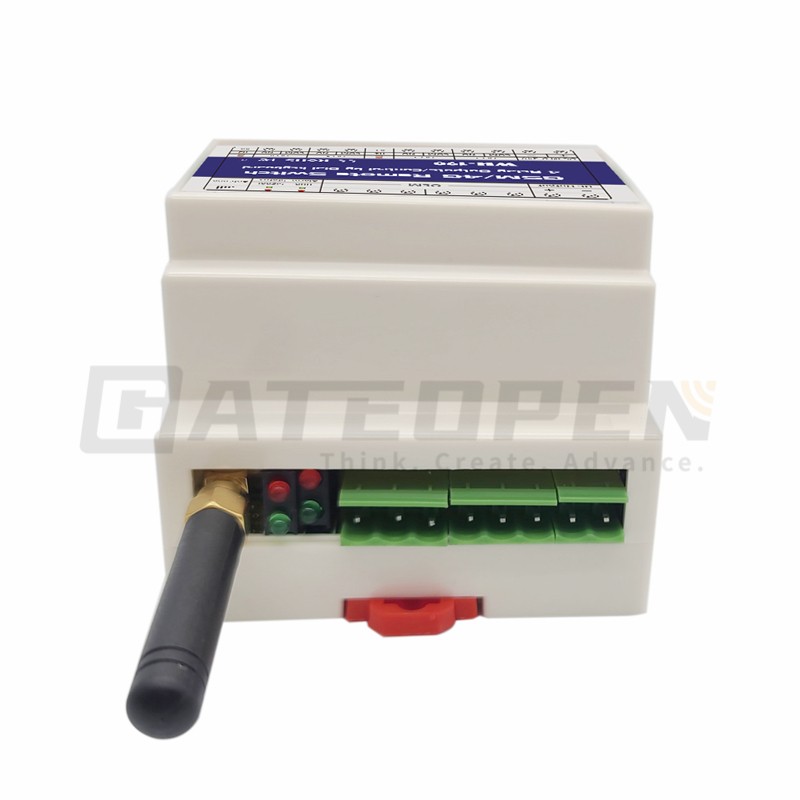

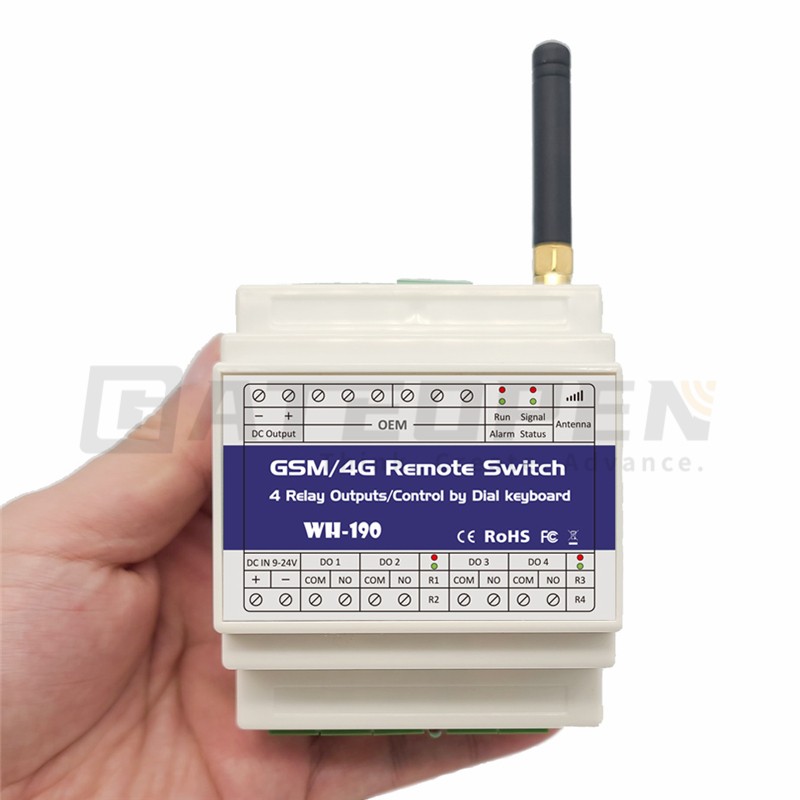

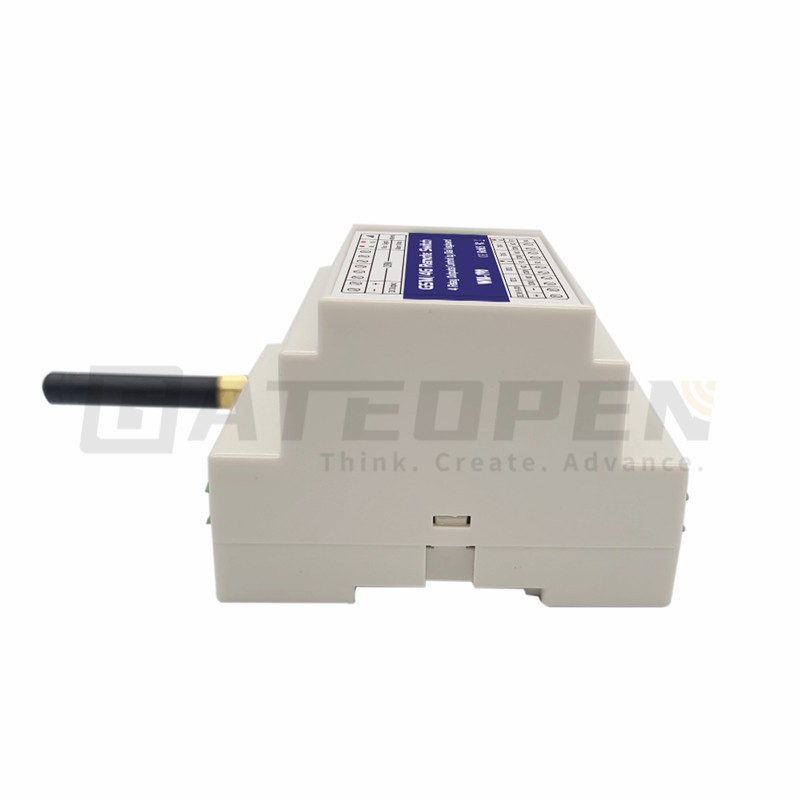

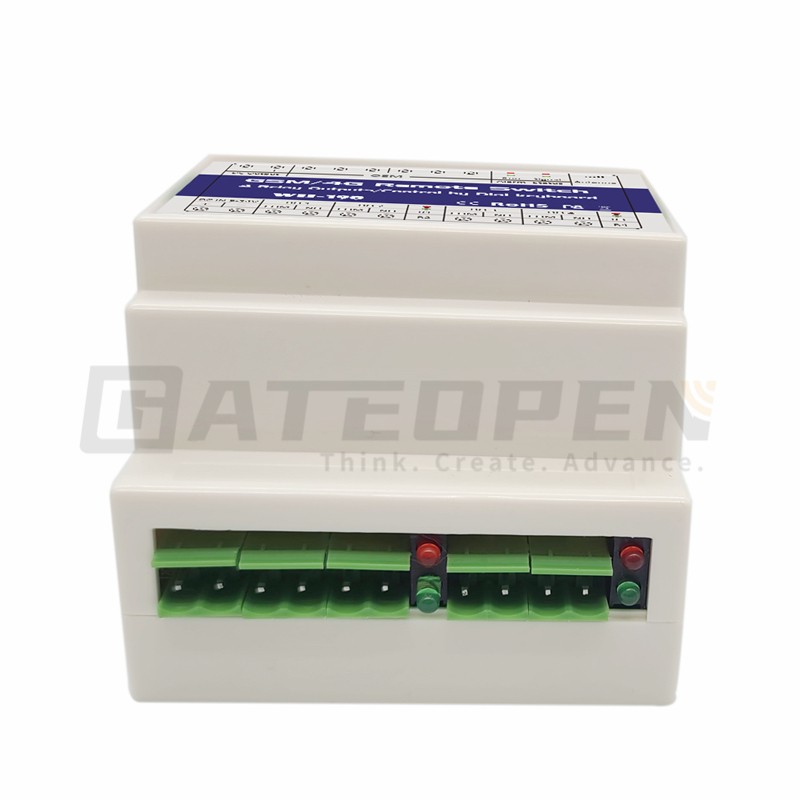

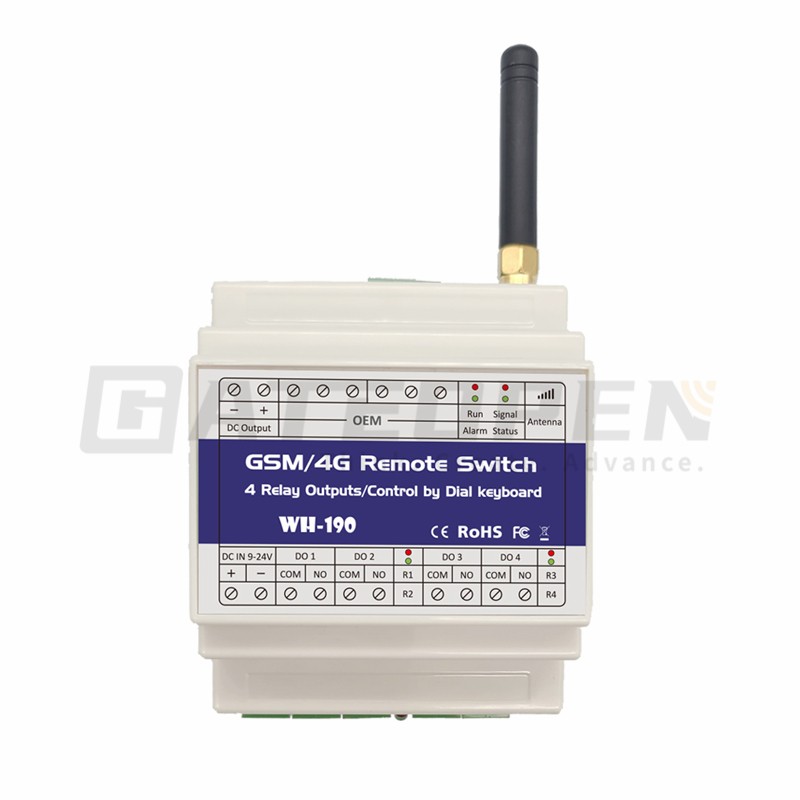

WH-190 GSM/4G LTE Cellular Remote Switch Control 4 Relay Outputs During the Phone Conversation

New Design Support 200 User Numbers GSM Cellular Remote Switch 4 Relay

EMAIL



Features

1.We can control 4 relays by the keys on the mobile phone during the phone conversation
2.Remember relays status when power failure
3.Automatically report current status by SMS to the 1 st number
4.Multiple applications. (gates, bollards, barriers,
garage doors, shutters and access doors or machines).
5.Secure - Using caller ID for identification, unknown callers are ignored.
6.Can be operated from anywhere, no distance limit.
7.Add or remove users by SMS Text command.
8.The relay close time is programmable.
9.Up to 200 authorized phone numbers can be configured.

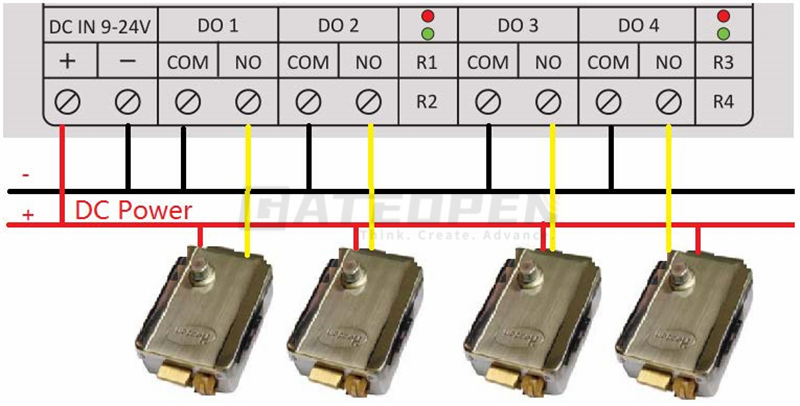

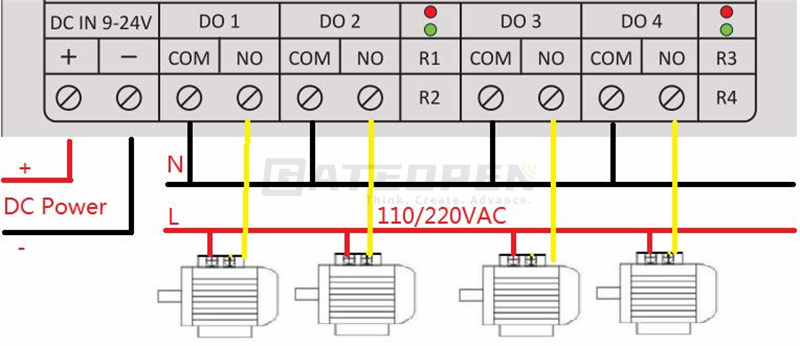

10.Four outputs with relay (3A/240VAC)for connecting the switch of the door or machines.
11.The relay action will return a SMS confirmation to the owner, this function is editable by user.

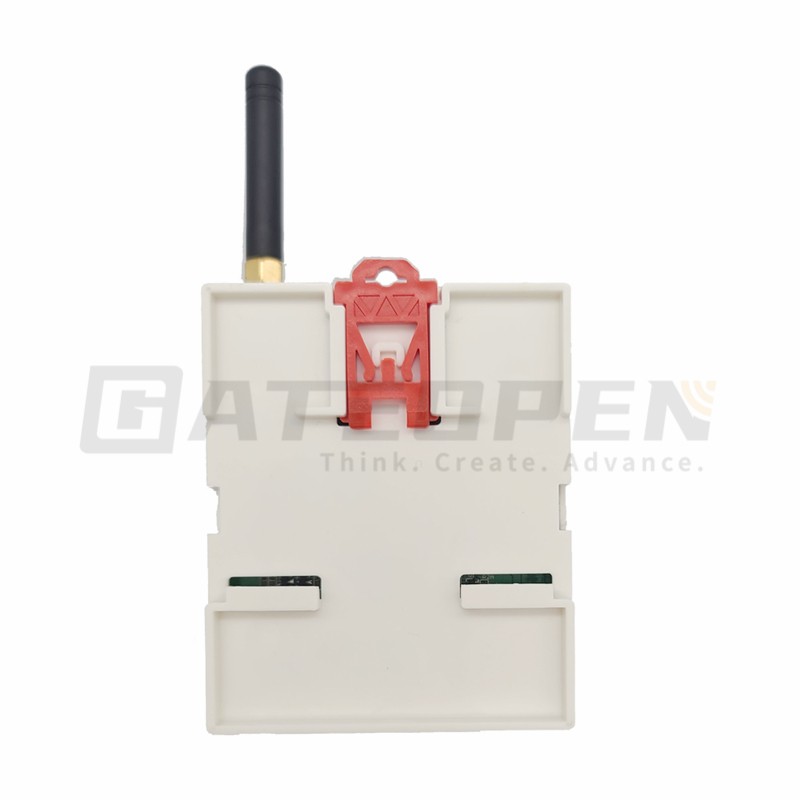

12.Easy to install(Industrial guide rail:35mm) 13.Based on GSM /4G Network, applied to many applications.

Specifications:

1.Rated Voltage: DC 9V~36V/1A

2.Working temperature: -10℃~+60℃

3.Storage temperature: -20℃~+60℃

4.Relative humidity: 10-90%, No condensation

5.Work frequency:

   GSM: 850/900/1800/1900MHz

   or

   4G: C:GSM:900/1800,LTE-FDD B1/B3/B5/B8    LTE-TDD:B34/B38/B39/B40/B41

   E:GSM:900/1800,LTE-FDD B1/B3/B5/B7/B8/B20

          SA:GSM: 850/900/1800/1900MHz LTE-FDD B1/B3/B5/B7/B8/B28/B66

6.Communication protocol: GSM PHASE 2/2+ (include data service)

7.Related Voltage of the Output Relay: 3A/240V AC

8.SIM Card:Nano type, 3V

9.Antenna: 50 Ω SMA

10.Wired Switch: Supports

11.Temp&Humidity sensor:

    Temperatures:-40-80°C,accuracy:0.5℃

    Humidity:0-99RH%, accuracy: 3%RH

12.Siren output:output voltage=DC input voltage,current:<1A

13.Backup Battery:3.7V/1000mAH (Optional)

14.Dimension: 96.5*72*59mm

15.Net Weight:188g



The keyboard operation mode is as follows:

Command

Description

voice prompt

1#

Relay1  close

AAON

2#

Relay2  close

BBON

3#

Relay3  close

CCON

4#

Relay4  close

DDDDON

1*

Relay1  open

AAOFF

2*

Relay2  open

BBOFF

3*

Relay3  open

CCOFF

4*

Relay4  open

DDDDOFF

0#

Relay 1234 close

ALLON

0*

Relay 1234 open

ALLOFF

9#

Inquire  the status of all the   relays


Notice:

It is best to complete the operation in 50 seconds,If more than 50 seconds, the device will hang up automatically,if you want to control it again,please dial it again.







Packaging Details:

1. Outside package: Standard marine export plywood case.

2. inner package: Stretchy film and plastic film for humidity.

3. We can package according to your requests.

Delivery Detail: Shipped in 5-30 working days after payment.

Production Time:
Normally in stock model products:

Quantity:1-100pcs only 2day ,Quantity:101-2000pcs need 3-15days, >2000pcs please contact with sales to confirm.

OEM time:
5-15days for 1000pcs, if over 10,00pcs, please contact with us to confirm the accurate  production  time.

OEM quantity:
If customized logo on products, MOQ:100 -300pcs;If customized packaging & use manual, MOQ: 500pcs

Shipping:





认证带LOGO 750.png



Q1: Are you a trading company or a manufactory?

A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !

Q2: What’s your guarantee or the warranty of the quality if we buy your machines?

A2: We offer you high quality product with 1 year guarantee and supply life-long technical support.

Q3: When can I get my devices after I paid?

A3: The delivet time is based on the exact devices you confirmed.

Q4: How can I install my device when it arrives?

A4: We will provide complete operation video and manual of the devices and train your staff how to operate the devices online.

Q5: How about the Rutern this defective product?

A5: First of all, please send us the pictures and videos of the product for confirmation. If there is a problem with the product, please send it back to us through the international parcel service, if there is a problem with the product. Next time we order, we will send you a new product together.
