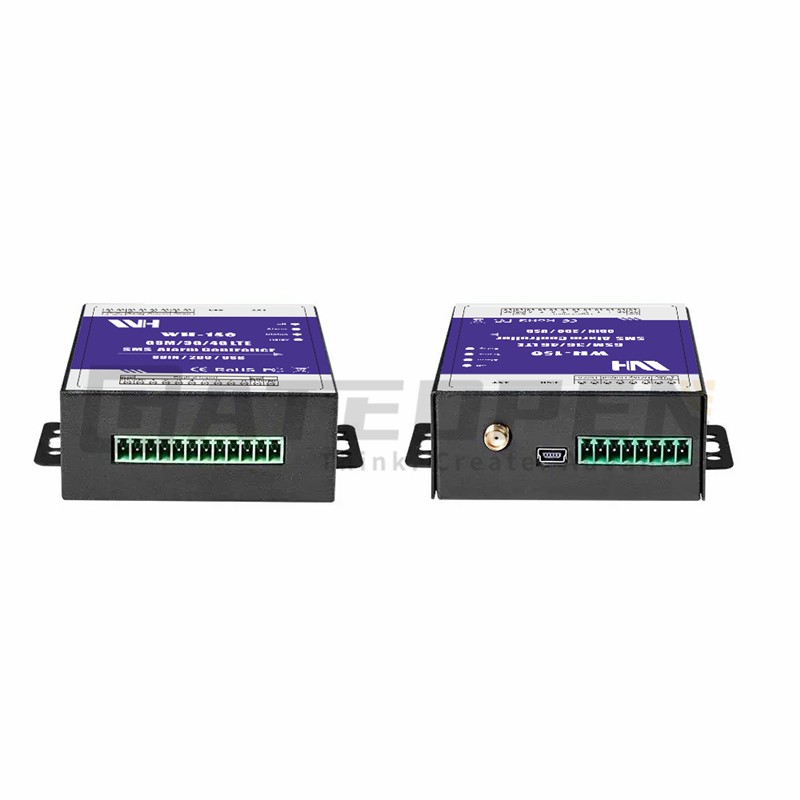

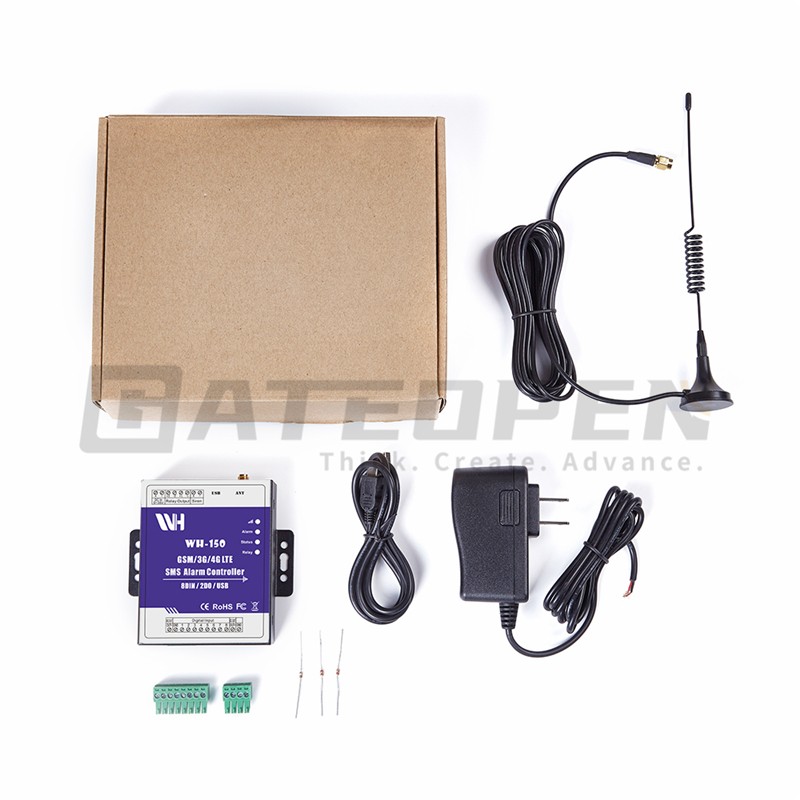

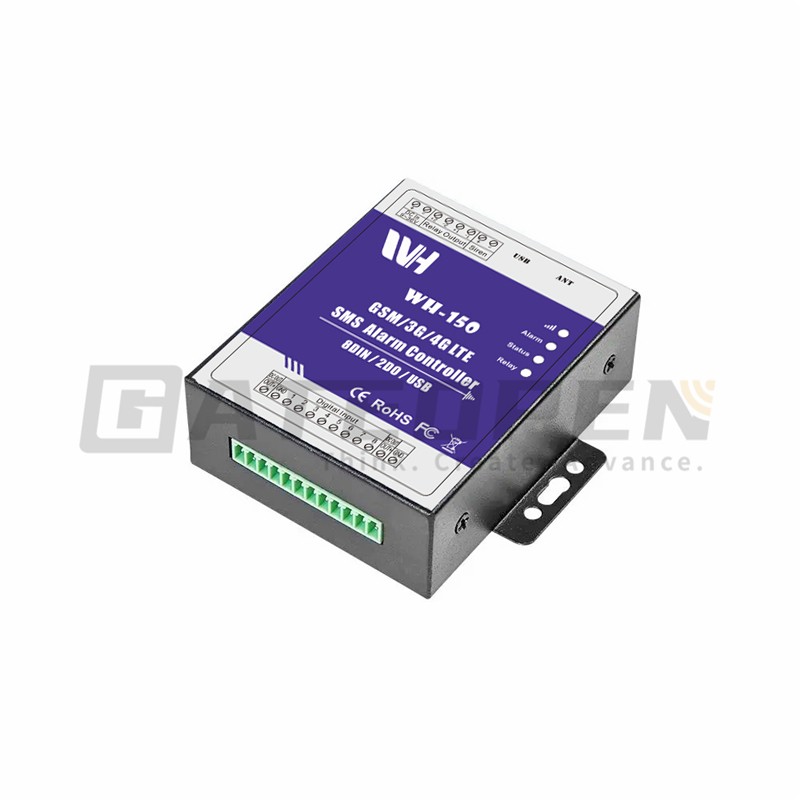

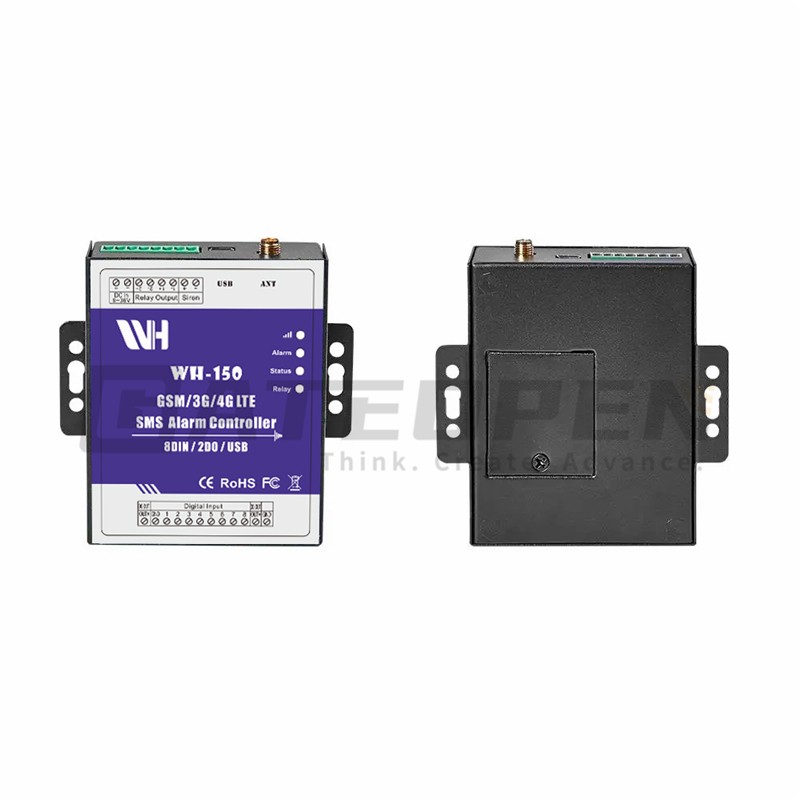

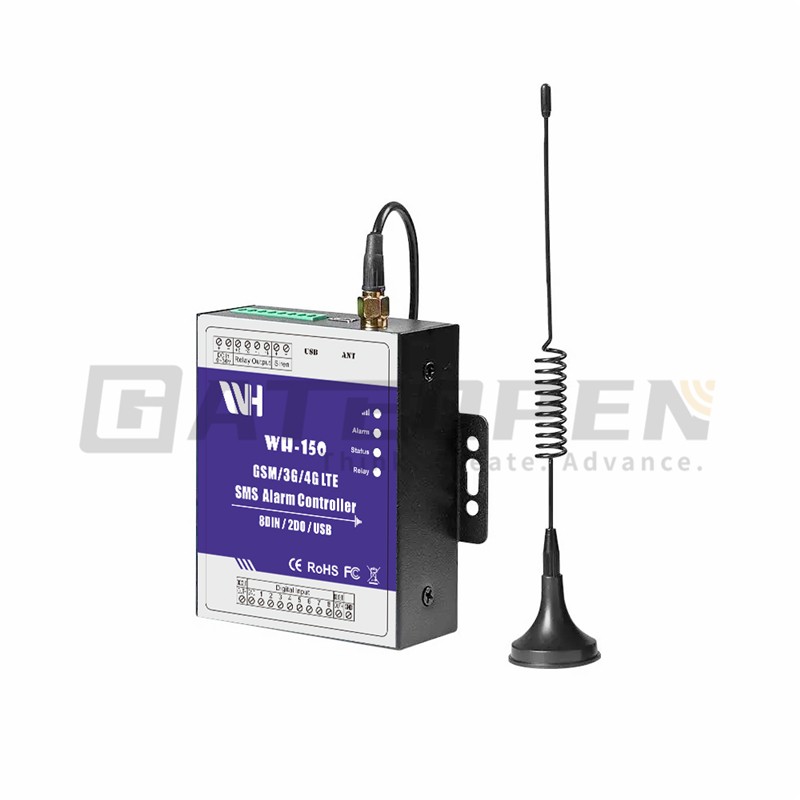

WH-150 GSM 2G 3G Cellular RTU SMS Alarm Controller Industrial IOT Monitoring System

WH-150 GSM 2G 3G Cellular RTU SMS Alarm Controller Industrial IOT Monitoring System

EMAIL



Features

1. GSM Frequency: 850/900/1800/1900Mhz; 3G UMTS/HSDPA Modules are optional.
2. 1 Independent Output Relay (240VAC3A) can be switched ON/OFF by sending a SMS text;
3. 1 Alarm-Link Output Relay (240VAC3A) can be switch on 0-120minutes if controller unit triggered;
4.  2/4/8 Alarm logic digital inputs, NC or NO and EOL is optional;
5. 3 SMS Alert numbers and 5 Alarm dial Telephone numbers can accept to the alarm message;
6. Supports armed, disarmed, inquiry status, switch on/off Output Relay by SMS Commands;
7. Password protected, prevents unauthorized user;
8. Can be set up and programmed from PC Configurator by USB cable;
9. Time stamped alarm messages.
10. Backup rechargeable battery inside, can work for 24hours when AC Power goes off.
11. Can be operated from anywhere, no distance limit;
12. Based on GSM Network, applied to many applications.
13. Wall mount or 35mm standard DIN rail Design, Installation Convenient! (Not including in the Package)


Specifications:

Frequency:

   GSM: 850/900/1800/1900MHz

   3G WCDMA: 900/2100 MHz UMTS

   3G CDMA2000:850/1900MHz UMTS

   3G: 850/2100MHz UMTS

   4G LTE

Power adapter: DC 12V/1.5A

Power Current: Max:500mA   Type :50mA

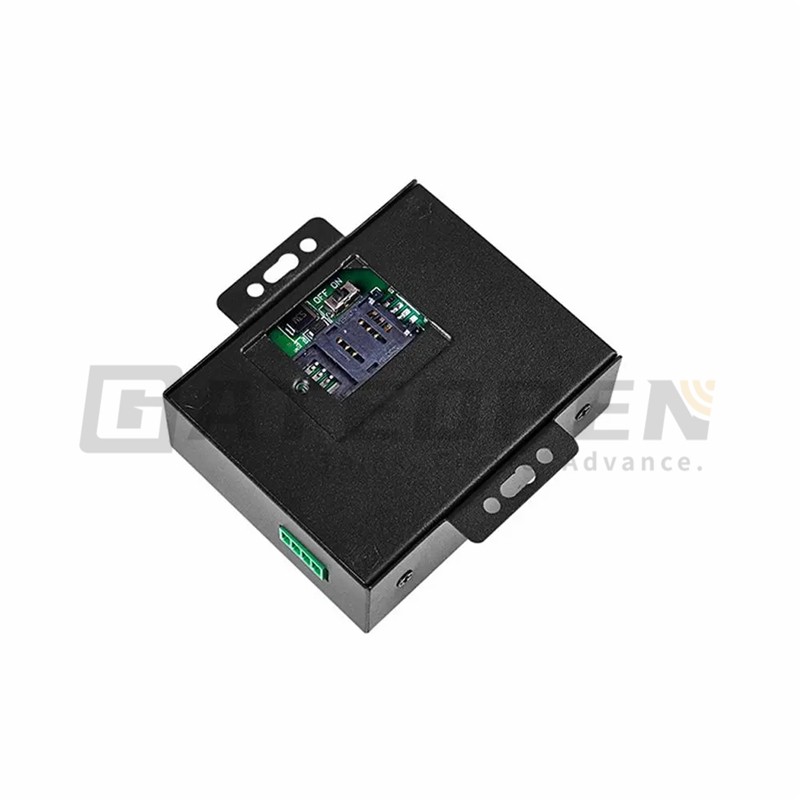

SIM Card: Supporting 3V SIM Card

GSM Antenna: 50 Ω SMA Antenna interface,

Serial  port: USB Port

Input Type: 8 dry contact, NC/NO/End Of Line

Output Type: 2 Relay Output, 240VAC/3A.

Dimension: LxWxH 153x86x28mm

Backup-Power: 3.7V 1200MAh LI-ION battery

Temperature: -20°C to +60 °C

Humidity: Relative humidity 20~95% (condensation free)

Net Weight: 320g

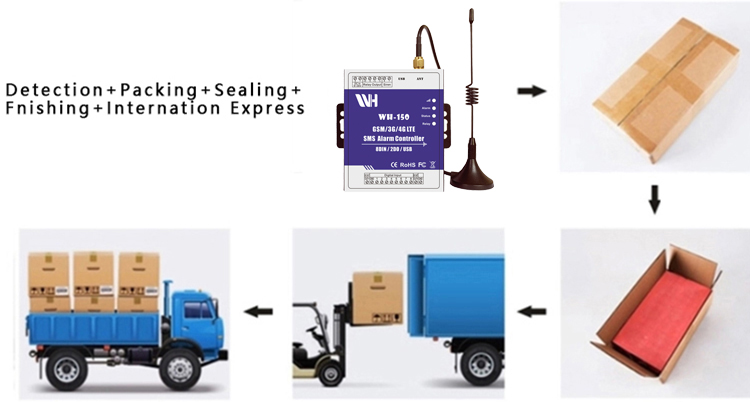

Packaging Details:

1. Outside package: Standard marine export plywood case.

2. inner package: Stretchy film and plastic film for humidity.

3. We can package according to your requests.

Delivery Detail: Shipped in 5-30 working days after payment.

Production Time:
Normally in stock model products:

Quantity:1-100pcs only 2day ,Quantity:101-2000pcs need 3-15days, >2000pcs please contact with sales to confirm.

OEM time:
5-15days for 1000pcs, if over 10,00pcs, please contact with us to confirm the accurate  production  time.

OEM quantity:
If customized logo on products, MOQ:100 -300pcs;If customized packaging & use manual, MOQ: 500pcs

Shipping:





认证带LOGO 750.png



Q1: Are you a trading company or a manufactory?

A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !

Q2: What’s your guarantee or the warranty of the quality if we buy your machines?

A2: We offer you high quality product with 1 year guarantee and supply life-long technical support.

Q3: When can I get my devices after I paid?

A3: The delivet time is based on the exact devices you confirmed.

Q4: How can I install my device when it arrives?

A4: We will provide complete operation video and manual of the devices and train your staff how to operate the devices online.

Q5: How about the Rutern this defective product?

A5: First of all, please send us the pictures and videos of the product for confirmation. If there is a problem with the product, please send it back to us through the international parcel service, if there is a problem with the product. Next time we order, we will send you a new product together.
