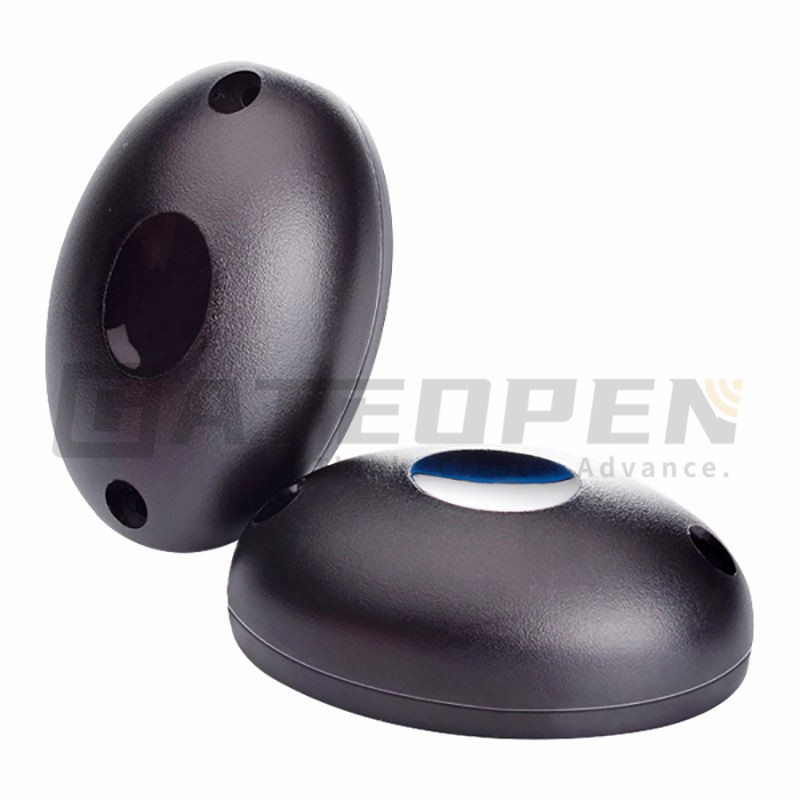

YET607 IP55 infrared photocells sensors gate photocell infrared single beam sensor for automatic gate

YET607 IP55 infrared photocells sensors gate photocell infrared single beam sensor for automatic gate



Wireless Outdoor Infrared Detector Infared Laser Beam Sensor Yet607

1.Infrared Frequancy : 1.92khz
2.Power supply : 12 to 24 VDC /AC
3.Wave length :940nm
4.Input : r*15ma - t*30ma
5.Operating temperature : --20 degrees to 50degrees
6.Relay output : 1 a max *36 v

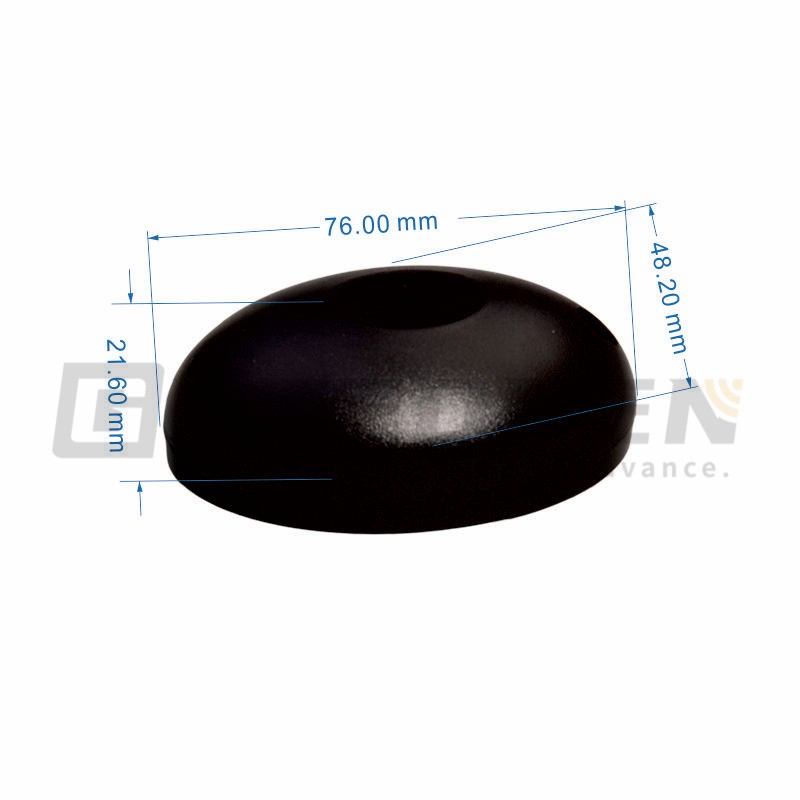

7.Dimension: 49.2 x 76 x 21.6mm
8.Range : range can be reduced to 30% in bad weather conditions : for rain ,dust ,etc

1.Single beam sensor/single beam detector is used for automatic slide door, coil door , garage door windows etc.

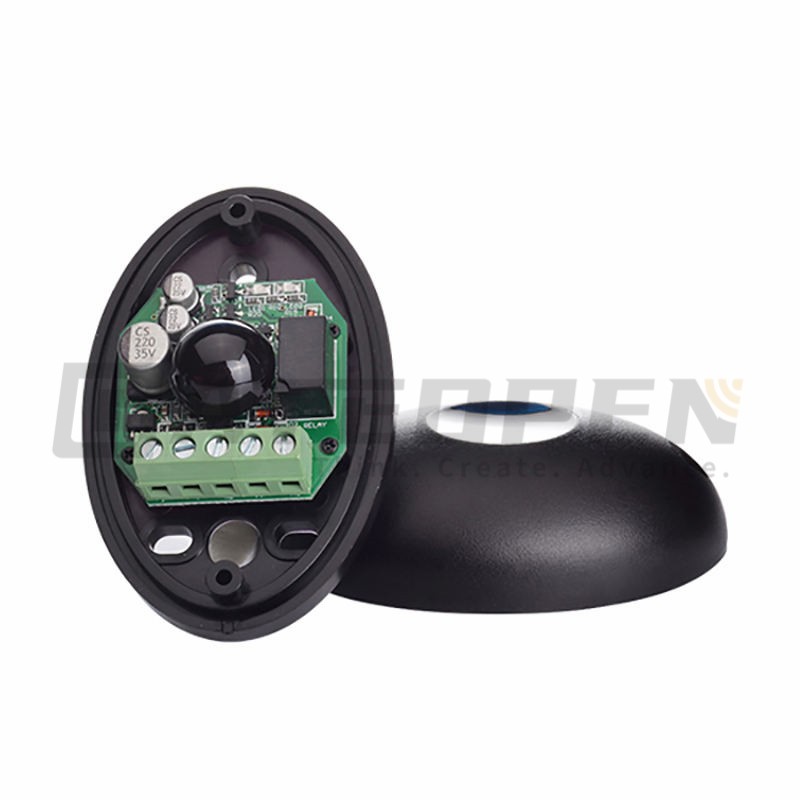

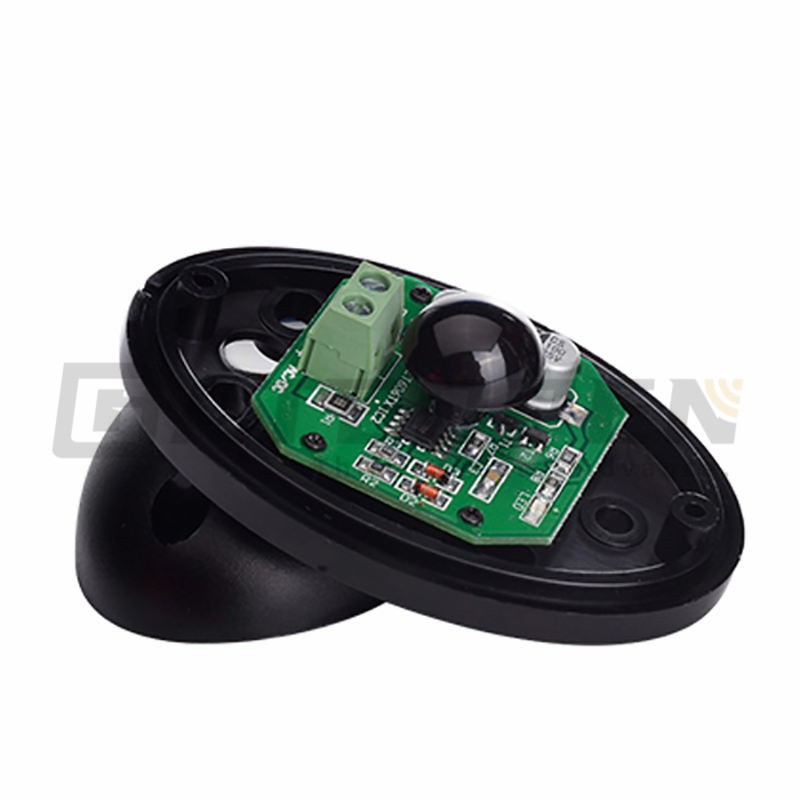

2.Consists of a transmitter and a receiver, and the integrated amplifier can produce infrared beam.
Narrow infrared beam (I or II) can avoid interruption by external light.
3.Even installed at low height(20-40cm from the floor), the detecting distance can also be guaranteed(5-15meters).
4.The beam produced by MICROCELL provides a self-detecting function for the sliding doors. Once the self-detecting beam is
interrupted, the door will stop closing and reverse rapidly to the utmost width. The door will open until the detecting beam is
resumed. When the door completely closes, the detecting beam becomes invalid.

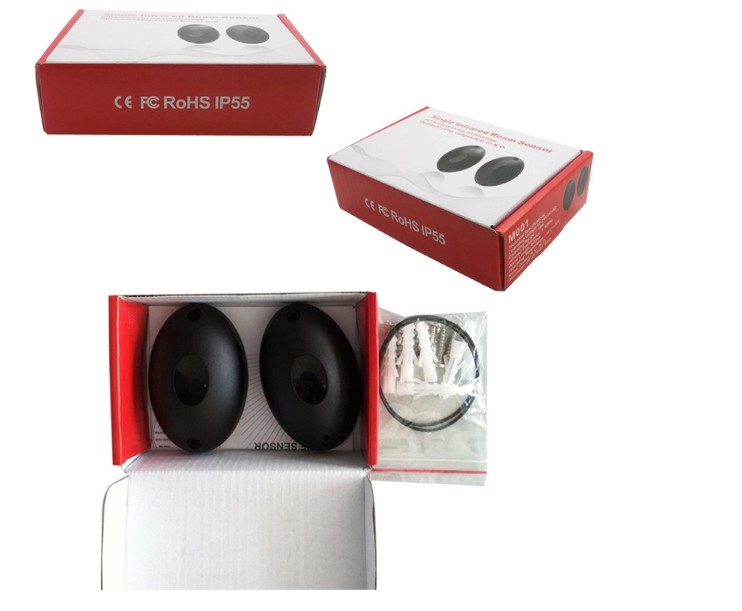

Packaging Details:

1. Outside package: Standard marine export plywood case.

2. inner package: Stretchy film and plastic film for humidity.

3. We can package according to your requests.

Delivery Detail: Shipped in 5-30 working days after payment.

Production Time:
Normally in stock model products:

Quantity:1-100pcs only 2day ,Quantity:101-2000pcs need 3-15days, >2000pcs please contact with sales to confirm.

OEM time:
5-15days for 1000pcs, if over 10,00pcs, please contact with us to confirm the accurate  production  time.

OEM quantity:
If customized logo on products, MOQ:100 -300pcs;If customized packaging & use manual, MOQ: 500pcs


认证带LOGO 750.png


Q1: Are you a trading company or a manufactory?

A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !

Q2: What’s your guarantee or the warranty of the quality if we buy your machines?

A2: We offer you high quality product with 1 year guarantee and supply life-long technical support.

Q3: When can I get my devices after I paid?

A3: The delivet time is based on the exact devices you confirmed.

Q4: How can I install my device when it arrives?

A4: We will provide complete operation video and manual of the devices and train your staff how to operate the devices online.

Q5: How about the Rutern this defective product?

A5: First of all, please send us the pictures and videos of the product for confirmation. If there is a problem with the product, please send it back to us through the international parcel service, if there is a problem with the product. Next time we order, we will send you a new product together.
