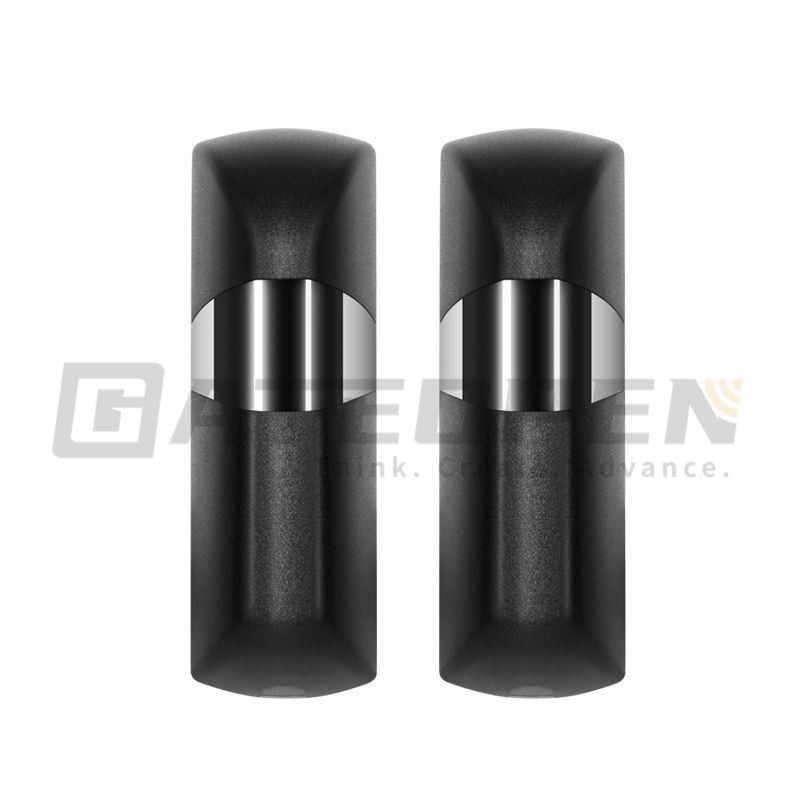

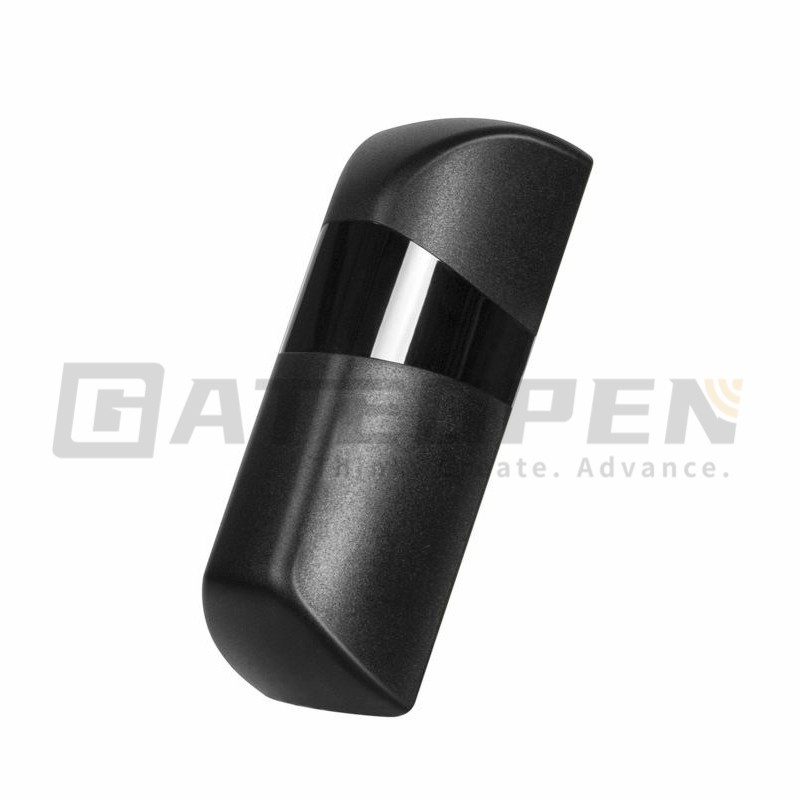

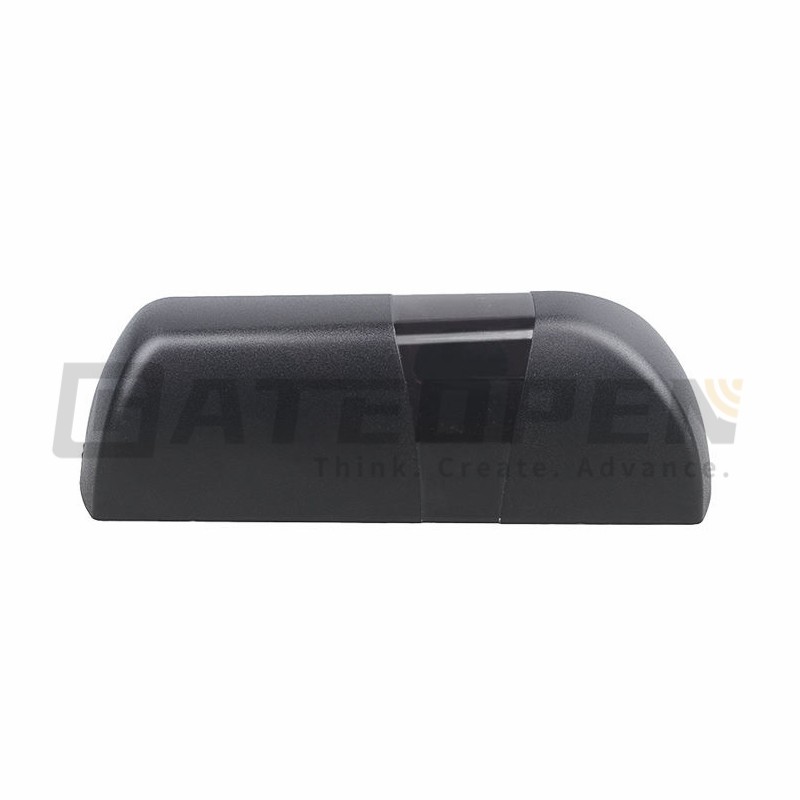

YET609 Automatic Gate Swing Gate Sliding Door Rolling Shutter Safety Photocell Sensor

YET609 Automatic Gate Swing Gate Sliding Door Rolling Shutter Safety Photocell Sensor

EMAIL


Features:

1.Single beam sensor/single beam detector is used for automatic slide door, coil door , garage door windows etc.

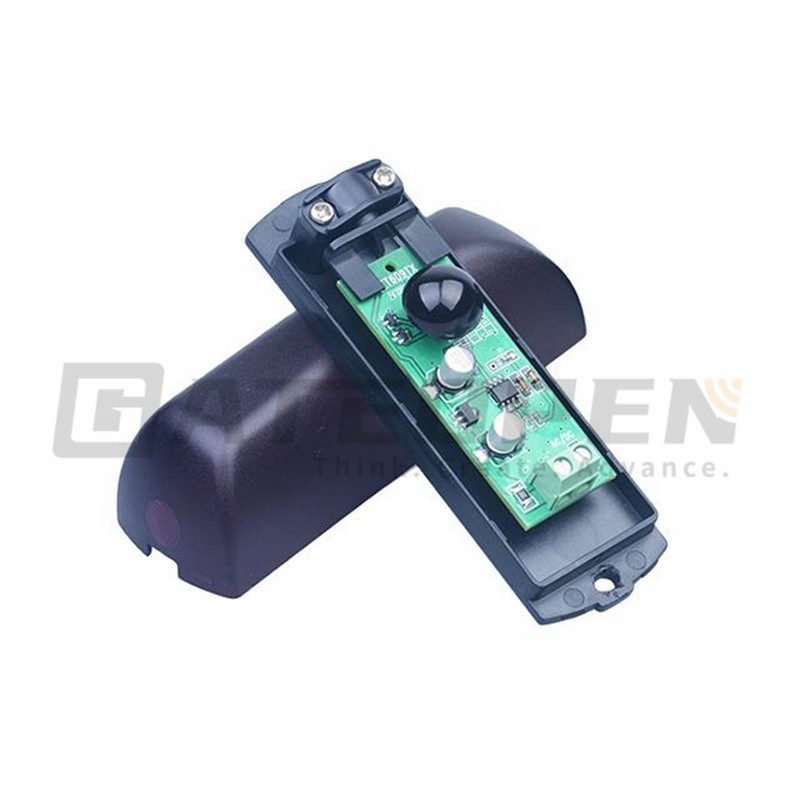

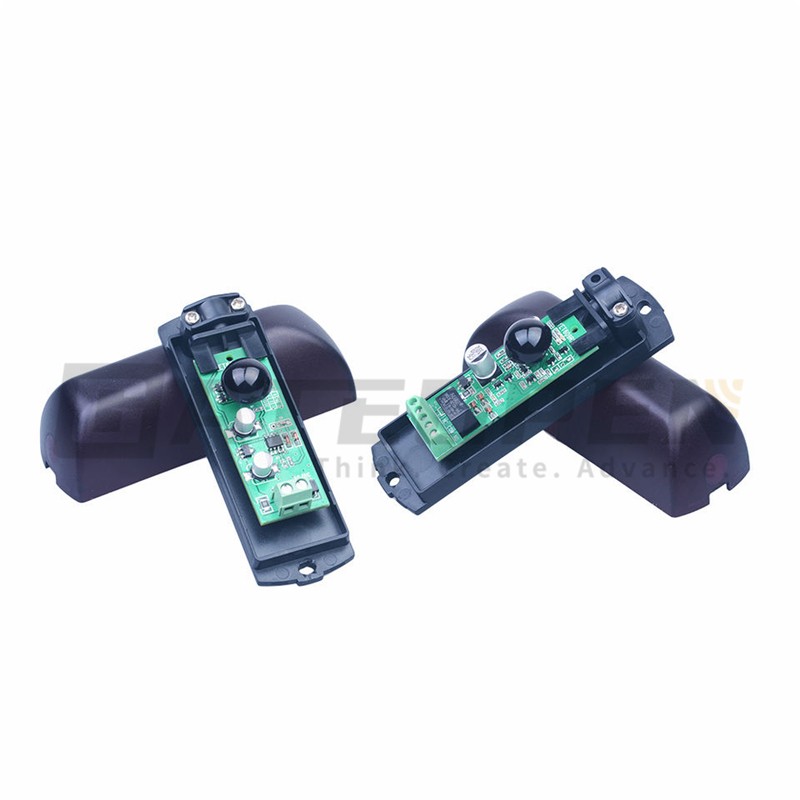

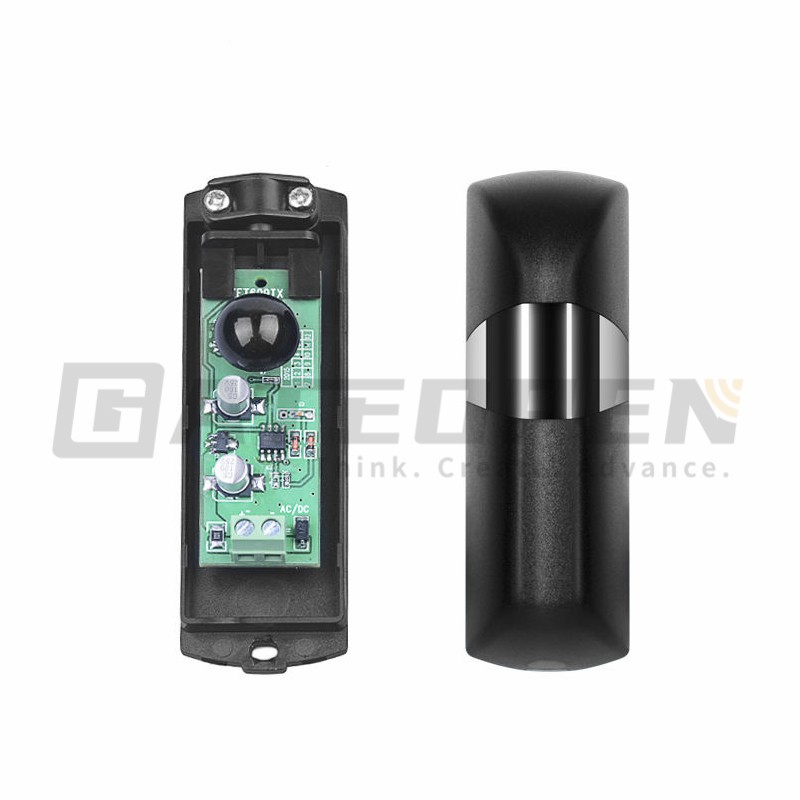

2.Consists of a transmitter and a receiver, and the integrated amplifier can produce infrared beam.

Narrow infrared beam (I or II) can avoid interruption by external light.

3.Even installed at low height(20-40cm from the floor), the detecting distance can also be guaranteed(5-15meters).

4.The beam produced by MICROCELL provides a self-detecting function for the sliding doors. Once the self-detecting beam is interrupted, the door will stop closing and reverse rapidly to the utmost width. The door will open until the detecting beam is resumed. When the door completely closes, the detecting beam becomes invalid.



Specifications

ModelYET609
Infrared Frequancy1.92khz
Power supply12 to 24 VDC /AC
Wave length940nm
Inputr*15ma - t*30ma
Operating temperature-20°C  to +50°C
Relay output1 a max *36 v
Dimension108 x 35 x 30 mm
Range

135°C   20M

range can be reduced to 30% in bad weather conditions : for rain ,dust ,etc

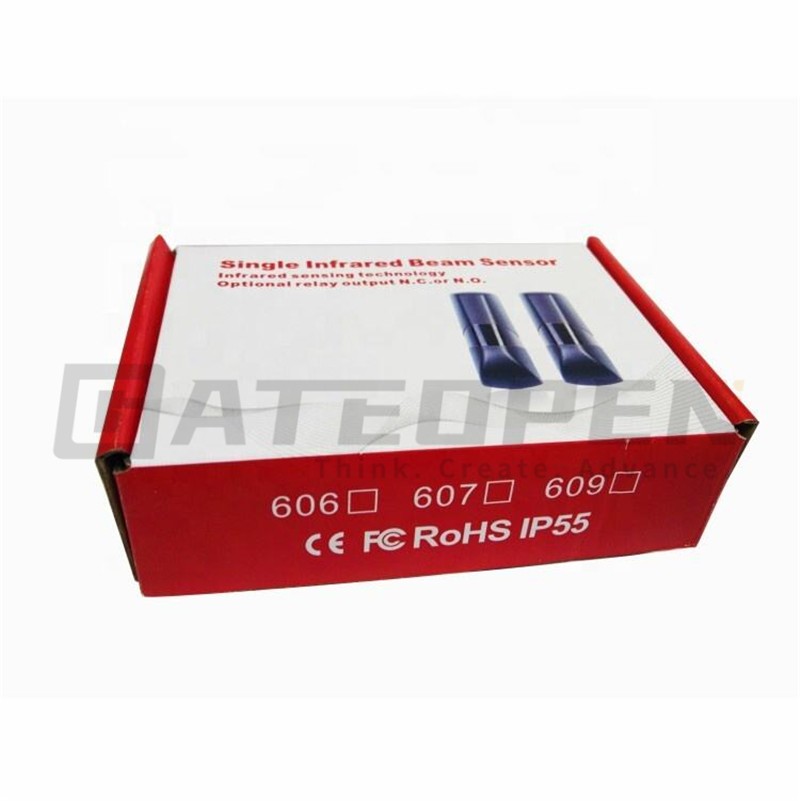

Packaging Details:

1. Outside package: Standard marine export plywood case.

2. inner package: Stretchy film and plastic film for humidity.

3. We can package according to your requests.

Delivery Detail: Shipped in 5-30 working days after payment.

Production Time:
Normally in stock model products:

Quantity:1-100pcs only 2day ,Quantity:101-2000pcs need 3-15days, >2000pcs please contact with sales to confirm.

OEM time:
5-15days for 1000pcs, if over 10,00pcs, please contact with us to confirm the accurate  production  time.

OEM quantity:
If customized logo on products, MOQ:100 -300pcs;If customized packaging & use manual, MOQ: 500pcs
